62SPB030A

Active

SMC Diode Solutions

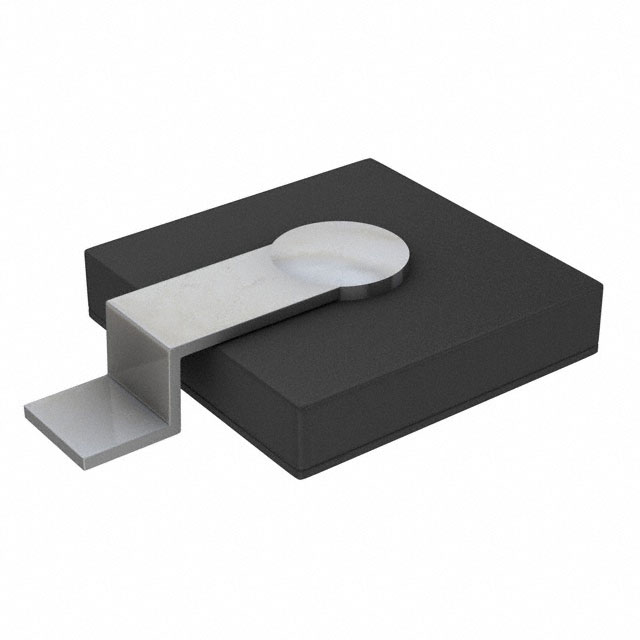

DIODE SCHOTTKY 30V 60A SPD-2A

Search across all available documentation for this part.

Active

SMC Diode Solutions

DIODE SCHOTTKY 30V 60A SPD-2A

Technical Specifications

Parameters and characteristics for this part

Specification	62SPB030A

Capacitance @ Vr, F	3300 pF
Current - Average Rectified (Io)	60 A
Current - Reverse Leakage @ Vr	6 mA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	SPD-2A
Speed	200 mA, 500 ns
Supplier Device Package	SPD-2A
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	30 V
Voltage - Forward (Vf) (Max) @ If	530 mV

Part	Speed	Voltage - Forward (Vf) (Max) @ If	Technology	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Average Rectified (Io)	Package / Case	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]	Supplier Device Package	Current - Reverse Leakage @ Vr	Capacitance @ Vr, F
SMC Diode Solutions 62SPB030A	200 mA 500 ns	530 mV	Schottky	150 °C	-55 °C	60 A	SPD-2A	Surface Mount	30 V	SPD-2A	6 mA	3300 pF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	7200	$ 6.48

General part information

Diode 30 V 60A Surface Mount SPD-2A
