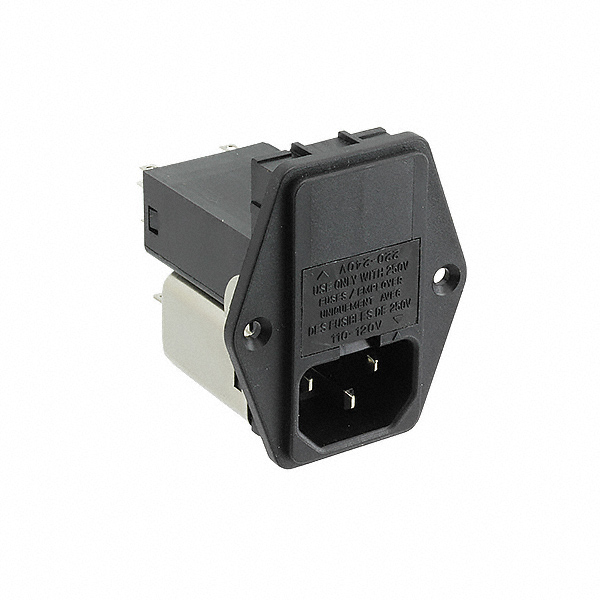

10SB4
ActiveDelta Electronics
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
10SB4
ActiveDelta Electronics
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 10SB4 | 10SB Series |
|---|---|---|
| Accomodates a Fuse | True | True |
| Approval Agency | UL, VDE, CSA | UL, VDE, CSA |
| Connector Style | IEC 320-C14 | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module | Receptacle, Male Blades - Module |
| Current Rating - Appliance Inlet | 10 A | 10 A |
| Current Rating - Filter | 10 A | 10 A |
| Filter Type | Filtered (EMI, RFI) - Commercial | Filtered (EMI, RFI) - Commercial, Filtered (EMI, RFI) - Commercial, Medical |
| Fuse Holder, Drawer | Fuse Holder, Twin Fused | Fuse Holder, Fuse Holder, Twin Fused |
| Mounting Type | Panel Mount, Flange | Panel Mount, Flange |
| Panel Cutout Dimensions [x] | 28.5 mm | 28.5 mm |
| Panel Cutout Dimensions [y] | 55.9 mm | 55.9 mm |
| Switch Features | - | Switch On-Off |
| Termination | Solder Eyelet | Solder Eyelet |
| Voltage Rating - Appliance Inlet [Max] | 250 VAC | 250 VAC |
| Voltage Rating - Appliance Inlet [Min] | 115 VAC | 115 VAC |
10SB Series
PWR ENT MOD RCPT IEC320-C14 PNL
| Part | Connector Type | Switch Features | Current Rating - Appliance Inlet | Filter Type | Mounting Type | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Termination | Approval Agency | Voltage Rating - Appliance Inlet [Min] | Voltage Rating - Appliance Inlet [Max] | Accomodates a Fuse | Connector Style | Fuse Holder, Drawer | Current Rating - Filter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Delta Electronics 10SB3S | Receptacle, Male Blades - Module | Switch On-Off | 10 A | Filtered (EMI, RFI) - Commercial | Flange, Panel Mount | 55.9 mm | 28.5 mm | Solder Eyelet | CSA, UL, VDE | 115 VAC | 250 VAC | IEC 320-C14 | Fuse Holder | ||
Delta Electronics 10SB3 | Receptacle, Male Blades - Module | Switch On-Off | 10 A | Filtered (EMI, RFI) - Commercial | Flange, Panel Mount | 55.9 mm | 28.5 mm | Solder Eyelet | CSA, UL, VDE | 115 VAC | 250 VAC | IEC 320-C14 | Fuse Holder, Twin Fused | ||
Delta Electronics 10SB3SM | Receptacle, Male Blades - Module | Switch On-Off | 10 A | Filtered (EMI, RFI) - Commercial, Medical | Flange, Panel Mount | 55.9 mm | 28.5 mm | Solder Eyelet | CSA, UL, VDE | 115 VAC | 250 VAC | IEC 320-C14 | Fuse Holder | ||
Delta Electronics 10SB4 | Receptacle, Male Blades - Module | 10 A | Filtered (EMI, RFI) - Commercial | Flange, Panel Mount | 55.9 mm | 28.5 mm | Solder Eyelet | CSA, UL, VDE | 115 VAC | 250 VAC | IEC 320-C14 | Fuse Holder, Twin Fused | 10 A | ||
Delta Electronics 10SB3M | Receptacle, Male Blades - Module | Switch On-Off | 10 A | Filtered (EMI, RFI) - Commercial, Medical | Flange, Panel Mount | 55.9 mm | 28.5 mm | Solder Eyelet | CSA, UL, VDE | 115 VAC | 250 VAC | IEC 320-C14 | Fuse Holder, Twin Fused |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
10SB Series
Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
