245655040700829+T

Active

KYOCERA AVX

RECEPT 0.5MM - 7MM - VERT -FLOAT

Search across all available documentation for this part.

Active

KYOCERA AVX

RECEPT 0.5MM - 7MM - VERT -FLOAT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

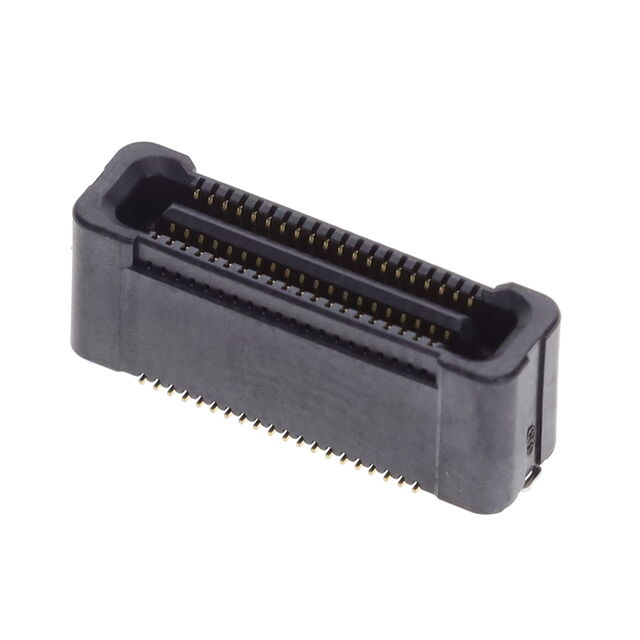

40 Position Connector Receptacle, Floating Surface Mount Gold

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	245655040700829+T	245655 Series

Connector Type	Floating, Receptacle	Floating, Receptacle
Contact Finish	Gold	Gold
Features	Solder Retention, Board Guide	Solder Retention, Board Guide
Height Above Board	0.226 in	0.108 - 0.226 in
Height Above Board	5.74 mm	2.75 - 5.74 mm
Height Above Board	-	0.187 in
Mated Stacking Heights	7 mm	4 - 7 mm
Mounting Type	Surface Mount	Surface Mount
Number of Positions	40	30 - 100
Number of Rows	2	2
Pitch [x]	0.5 mm	0.5 mm
Pitch [x]	0.02 in	0.02 in

RECEPT 0.5MM - 4MM - VERT -FLOAT

Part	Number of Positions	Connector Type	Features	Mounting Type	Number of Rows	Contact Finish	Pitch [x]	Pitch [x]	Mated Stacking Heights	Height Above Board	Height Above Board	Height Above Board [z]
KYOCERA AVX 245655040400829+T	40	Floating, Receptacle	Board Guide, Solder Retention	Surface Mount	2	Gold	0.5 mm	0.02 in	4 mm	0.108 in	2.75 mm
KYOCERA AVX 245655080700829+T	80	Floating, Receptacle	Board Guide, Solder Retention	Surface Mount	2	Gold	0.5 mm	0.02 in	7 mm	0.226 in	5.74 mm
KYOCERA AVX 245655080400829+T	80	Floating, Receptacle	Board Guide, Solder Retention	Surface Mount	2	Gold	0.5 mm	0.02 in	4 mm	0.108 in	2.75 mm
KYOCERA AVX 245655030700829+T	30	Floating, Receptacle	Board Guide, Solder Retention	Surface Mount	2	Gold	0.5 mm	0.02 in	7 mm	0.226 in	5.74 mm
KYOCERA AVX 245655050700829+T	50	Floating, Receptacle	Board Guide, Solder Retention	Surface Mount	2	Gold	0.5 mm	0.02 in	7 mm	0.226 in	5.74 mm
KYOCERA AVX 245655030400829+T	30	Floating, Receptacle	Board Guide, Solder Retention	Surface Mount	2	Gold	0.5 mm	0.02 in	4 mm	0.108 in	2.75 mm
KYOCERA AVX 245655040600829+T	40	Floating, Receptacle	Board Guide, Solder Retention	Surface Mount	2	Gold	0.5 mm	0.02 in	6 mm		4.75 mm	0.187 in
KYOCERA AVX 245655050400829+T	50	Floating, Receptacle	Board Guide, Solder Retention	Surface Mount	2	Gold	0.5 mm	0.02 in	4 mm	0.108 in	2.75 mm
KYOCERA AVX 245655040700829+T	40	Floating, Receptacle	Board Guide, Solder Retention	Surface Mount	2	Gold	0.5 mm	0.02 in	7 mm	0.226 in	5.74 mm
KYOCERA AVX 245655060400829+T	60	Floating, Receptacle	Solder Retention	Surface Mount	2		0.5 mm	0.02 in	4 mm	0.108 in	2.75 mm
