2313-4-00-80-00-00-07-0
ActiveMill-Max Manufacturing Corp.

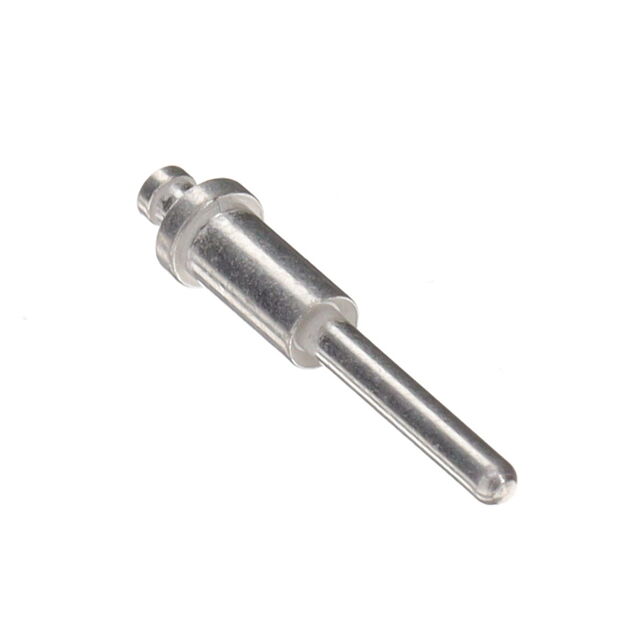

TERM TURRET PIN
Deep-Dive with AI
Search across all available documentation for this part.
2313-4-00-80-00-00-07-0
ActiveMill-Max Manufacturing Corp.
TERM TURRET PIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2313-4-00-80-00-00-07-0 |
|---|---|
| Board Thickness | 0.145 in |
| Board Thickness | 3.68 mm |
| Contact Finish | Tin |
| Contact Finish Thickness | 200 Áin |
| Contact Finish Thickness | 5.08 Ám |
| Contact Material | Brass Alloy |
| Diameter - Turret Head [diameter] | 0.051 in |
| Diameter - Turret Head [diameter] | 1.3 mm |
| Flange Diameter [diameter] | 2.39 mm |
| Flange Diameter [diameter] | 0.094 in |
| Insulation | Non-Insulated |
| Length - Above Board [x] | 0.078 " |
| Length - Above Board [x] | 1.98 mm |
| Length - Overall [x] | 0.473 in |
| Length - Overall [x] | 12.01 mm |
| Mounting Hole Diameter [diameter] | 1.93 mm |
| Mounting Hole Diameter [diameter] | 0.076 in |
| Mounting Type | Through Hole |
| Number of Turrets | Single |
| Terminal Type | Double End, Pin |
| Termination | Swage |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.85 | |
| 10 | $ 0.72 | |||
| 100 | $ 0.64 | |||
| 1000 | $ 0.47 | |||
| 5000 | $ 0.41 | |||
| 10000 | $ 0.39 | |||
Description
General part information
2313-4 Series
Terminal Turret Connector Double End, Pin 0.078" (1.98mm) Tin
