L77SDCH37SOL2C309

Active

Amphenol ICC (Commercial Products)

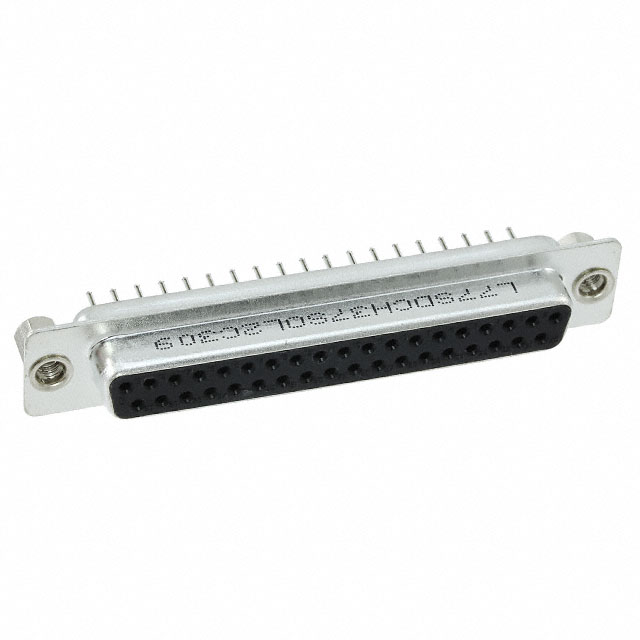

CONN D-SUB RCPT 37POS VERT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L77SDCH37SOL2C309

Active

Amphenol ICC (Commercial Products)

CONN D-SUB RCPT 37POS VERT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L77SDCH37SOL2C309

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Form	Stamped
Contact Material	Phosphor Bronze
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic, Glass Filled
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	4 (DC, C)
Termination	Solder
Voltage Rating	250 VDC

L77SDCH37 Series

Part	Contact Type	Mounting Type	Material Flammability Rating	Dielectric Material	Number of Rows	Termination	Contact Form	Color	Flange Feature	Voltage Rating	Contact Material	Contact Finish	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Connector Type	Shell Size, Connector Layout	Contact Finish Thickness	Contact Finish Thickness	Connector Style	Contact Finish Thickness	Wire Gauge
Amphenol ICC (Commercial Products) L77SDCH37SOL2GC309	Signal	Through Hole	UL94 V-0	Thermoplastic Glass Filled	2	Solder	Stamped	Black	4-40 Board Side	250 VDC	Phosphor Bronze	Gold	3 A	-55 °C	125 °C	37	Receptacle Female Sockets	4 (DC C)	0.76 Ám	30 Áin	D-Sub
Amphenol ICC (Commercial Products) L77SDCH37SOL2G	Signal	Through Hole	UL94 V-0	Thermoplastic Glass Filled	2	Solder	Stamped	Black	4-40 Board Side	250 VDC	Phosphor Bronze	Gold	3 A	-55 °C	125 °C	37	Receptacle Female Sockets	4 (DC C)			D-Sub	Flash
Amphenol ICC (Commercial Products) L77SDCH37SOL2C309	Signal	Through Hole	UL94 V-0	Thermoplastic Glass Filled	2	Solder	Stamped	Black	4-40 Board Side	250 VDC	Phosphor Bronze	Gold	3 A	-55 °C	125 °C	37	Receptacle Female Sockets	4 (DC C)	0.76 Ám	30 Áin	D-Sub
Amphenol ICC (Commercial Products) L77SDCH37S	Signal	Free Hanging (In-Line)	UL94 V-0	Thermoplastic Glass Filled	2		Stamped	Black	Cable Side	250 VDC	Brass	Gold	3 A	-55 °C	105 ░C	37	Receptacle Female Sockets	4 (DC C)			D-Sub	Flash	20 AWG
Amphenol ICC (Commercial Products) L77SDCH37SOL2RM8	Signal	Through Hole	UL94 V-0	Thermoplastic Glass Filled	2	Solder	Stamped	Black	Board Side (4-40) Mating Side Female Screwlock (4-40)	250 VDC	Phosphor Bronze	Gold	3 A	-55 °C	125 °C	37	Receptacle Female Sockets	4 (DC C)			D-Sub	Flash
Amphenol ICC (Commercial Products) L77SDCH37SOL2RM8GC309	Signal	Through Hole	UL94 V-0	Thermoplastic Glass Filled	2	Solder	Stamped	Black	Board Side (4-40) Mating Side Female Screwlock (4-40)	250 VDC	Phosphor Bronze	Gold	3 A	-55 °C	125 °C	37	Receptacle Female Sockets	4 (DC C)	0.76 Ám	30 Áin	D-Sub
Amphenol ICC (Commercial Products) L77SDCH37SOL2RM8G	Signal	Through Hole	UL94 V-0	Thermoplastic Glass Filled	2	Solder	Stamped	Black	Board Side (4-40) Mating Side Female Screwlock (4-40)	250 VDC	Phosphor Bronze	Gold	3 A	-55 °C	125 °C	37	Receptacle Female Sockets	4 (DC C)			D-Sub	Flash
Amphenol ICC (Commercial Products) L77SDCH37SC309	Signal	Free Hanging (In-Line)	UL94 V-0	Thermoplastic Glass Filled	2		Stamped	Black	Cable Side	250 VDC	Brass	Gold	3 A	-55 °C	105 ░C	37	Receptacle Female Sockets	4 (DC C)	0.76 Ám	30 Áin	D-Sub		20 AWG
Amphenol ICC (Commercial Products) L77SDCH37SOL2RM8C309	Signal	Through Hole	UL94 V-0	Thermoplastic Glass Filled	2	Solder	Stamped	Black	Board Side (4-40) Mating Side Female Screwlock (4-40)	250 VDC	Phosphor Bronze	Gold	3 A	-55 °C	125 °C	37	Receptacle Female Sockets	4 (DC C)	0.76 Ám	30 Áin	D-Sub
Amphenol ICC (Commercial Products) L77SDCH37SOL2	Signal	Through Hole	UL94 V-0	Thermoplastic Glass Filled	2	Solder	Stamped	Black	4-40 Board Side	250 VDC	Phosphor Bronze	Gold	3 A	-55 °C	125 °C	37	Receptacle Female Sockets	4 (DC C)			D-Sub	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 5.78
		10	$ 4.42
		25	$ 3.99
		40	$ 3.78
		80	$ 3.51
		230	$ 3.14
		440	$ 2.94
		945	$ 2.72
		2400	$ 2.49

Description

General part information

L77SDCH37 Series

37 Position D-Sub Receptacle, Female Sockets Connector
