5406275-2
ActiveTE Connectivity AMP Connectors
CONN MOD JACK 8P8C R/A SHIELDED
5406275-2
ActiveTE Connectivity AMP Connectors
CONN MOD JACK 8P8C R/A SHIELDED
Description
General part information
5406275 Series

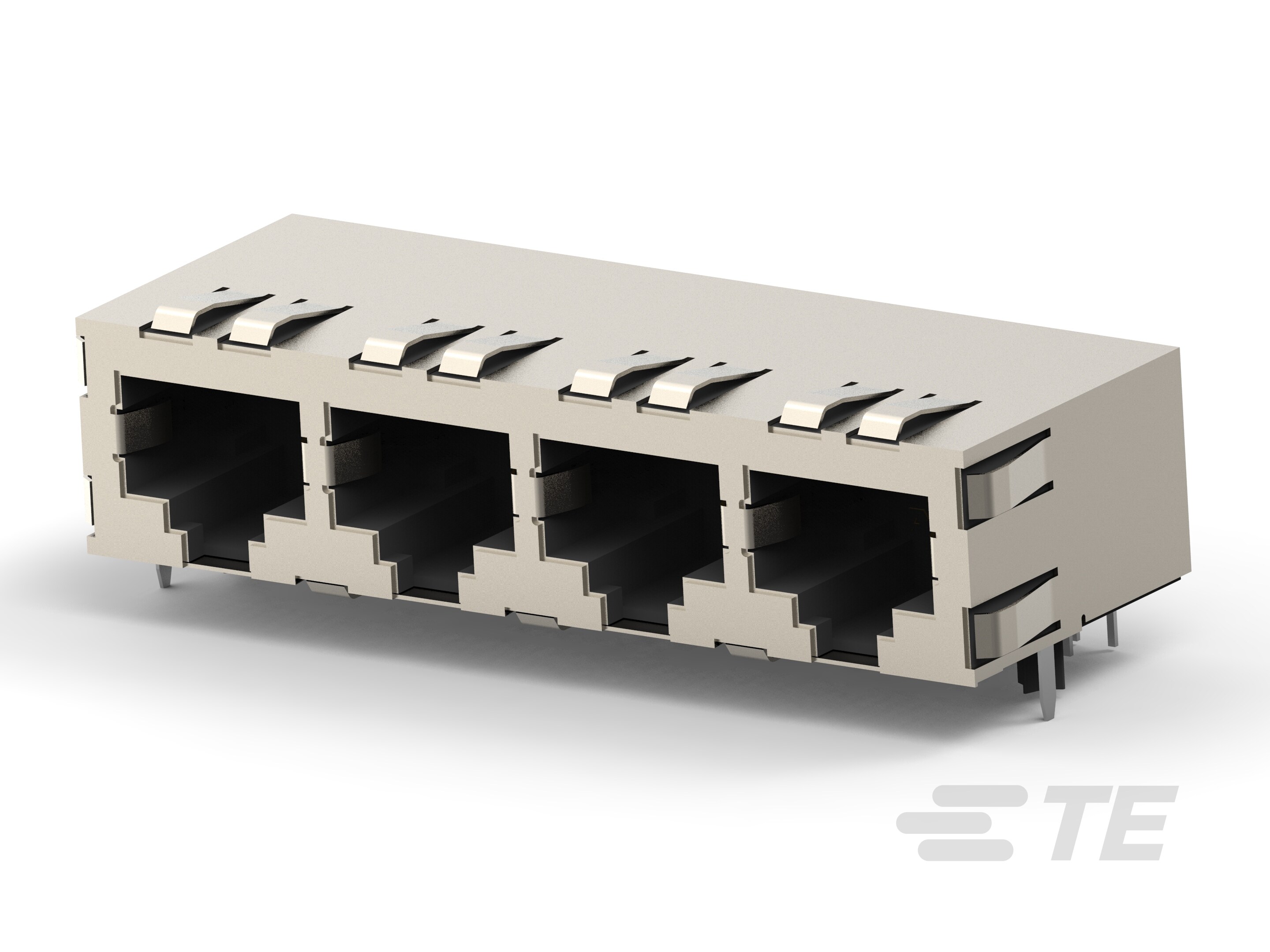

RJ45 Connector, Multiple Ports, 1 x 4, Jack, Shielded, Cat 5, Standard - Latch Down, 8 Position, Standard Profile, OEG Miniature Relay PCF
Technical Specifications
Parameters and characteristics for this part
| Specification | 5406275-2 |
|---|---|
| Connector Type | Ethernet, RJ45, Jack |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Material | Phosphor Bronze |
| Features | Board Guide |
| Housing Material | Nylon, Polyamide, PA |
| LED Color | Does Not Contain LED |
| Mounting Type | Through Hole |
| Number of Contacts | 8 |
| Number of Ports | 4 |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation Angle | 90 ° |
| Orientation Direction | Right |
| Ratings | Cat5 |
| Shielding | EMI Finger, Shielded |
| Tab Direction | Down |
| Termination | Solder |
