HTSW-131-07-S-S

Active

Samtec Inc.

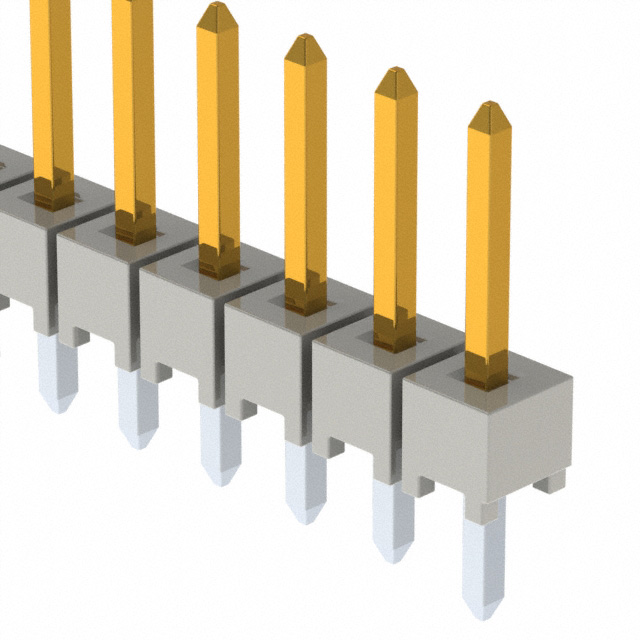

CONN HEADER VERT 31POS 2.54MM

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HEADER VERT 31POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	HTSW-131-07-S-S

null

Part	Insulation Height	Insulation Height	Contact Material	Insulation Color	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Contact Length - Mating	Current Rating (Amps)	Shrouding	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Contact Shape	Mounting Type	Termination	Fastening Type	Pitch - Mating	Pitch - Mating	Insulation Material	Number of Positions	Material Flammability Rating	Contact Type	Number of Positions Loaded	Number of Rows	Style	Contact Length - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Overall Contact Length	Overall Contact Length	Contact Finish - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]
Samtec Inc. HTSW-131-07-S-S
Samtec Inc. HTSW-131-12-G-S
Samtec Inc. HTSW-131-25-T-S-RA	3.1 mm	0.122 in	Phosphor Bronze	Natural	Tin	2.54 mm	0.1 in	8.13 mm	0.32 in	Varies by Wire Gauge	Unshrouded	105 ░C	-55 °C	Header	Square	Through Hole Right Angle	Solder	Push-Pull	0.1 in	2.54 mm	Liquid Crystal Polymer (LCP)	31	UL94 V-0	Male Pin	All	1	Board to Board Cable
Samtec Inc. HTSW-131-15-L-D
Samtec Inc. HTSW-131-07-G-D
Samtec Inc. HTSW-131-07-S-D	2.54 mm	0.1 in	Phosphor Bronze	Natural	Tin	2.54 mm	0.1 in	5.84 mm		Varies by Wire Gauge	Unshrouded	125 °C	-55 °C	Header	Square	Through Hole	Solder	Push-Pull	0.1 in	2.54 mm	Liquid Crystal Polymer (LCP)	62	UL94 V-0	Male Pin	All	2	Board to Board Cable	0.23 in	30 Áin	0.76 Ám	0.43 in	10.92 mm	Gold	2.54 mm	0.1 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.46

General part information

Connector Header position
