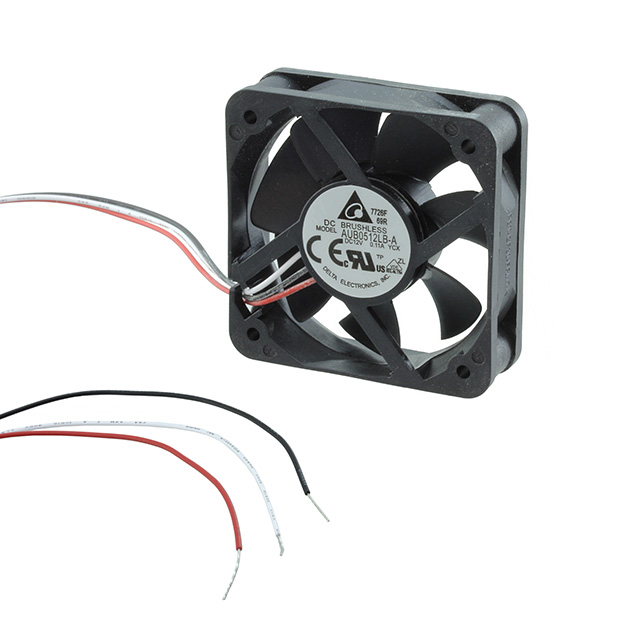

AUB0512LB-AYCX

Active

Delta Electronics

FAN AXIAL 50X15MM 12VDC WIRE

Search across all available documentation for this part.

Active

Delta Electronics

FAN AXIAL 50X15MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Noise	Weight	Weight	Static Pressure	Static Pressure	Width [x]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Features	Termination	Material - Frame	Lifetime @ Temp.	Material - Blade	RPM	Current Rating (Amps)	Bearing Type	Size / Dimension [z]	Size / Dimension [x]	Approval Agency	Voltage - Rated	Power (Watts)	Fan Type
Delta Electronics AUB0512LB-AYCX	20 dB	20.41 g	0.045 lb	23.9 Pa	0.096 in H2O	15 mm	-10 °C	-10 °C	60 °C	60 °C	Locked Rotor Sensor	3 Wire Leads	Plastic	50000 Hrs	Plastic	3800 RPM	40 mA	Superflo	50 mm	50 mm	CE cURus VDE	12 VDC	0.48 W	Tubeaxial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1008	$ 5.24

General part information

Fan Tubeaxial 12VDC Square - 50mm L x 50mm H Superflo 10.0 CFM (0.280m³/min) 3 Wire Leads
