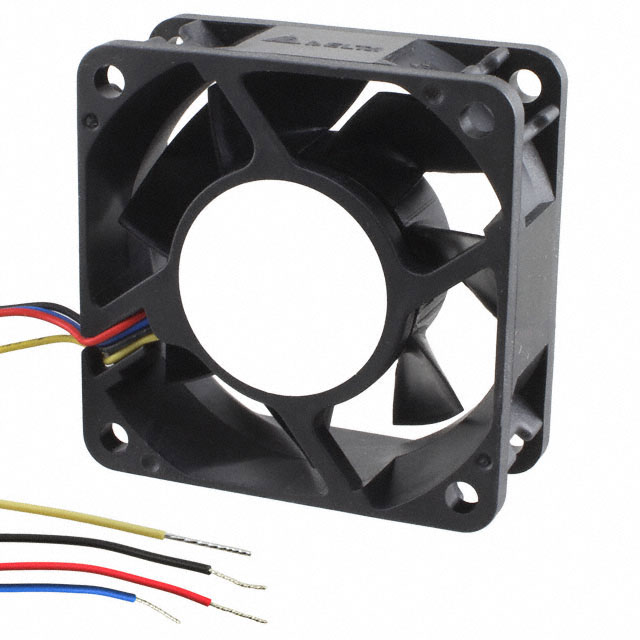

AFB0624EH-SP50

Active

Delta Electronics

FAN AXIAL 60X25.4MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAFB0624EH-SP50 Spec Sheet Datasheet +3

AFB0624EH-SP50

Active

Delta Electronics

FAN AXIAL 60X25.4MM 24VDC WIRE

Deep-Dive with AI

DocumentsAFB0624EH-SP50 Spec Sheet Datasheet +3

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 24.58
		10	$ 22.87
		25	$ 20.58
		50	$ 18.86
		180	$ 17.72
		360	$ 15.43
		540	$ 14.86

Description

General part information

AFB0624 Series

Fan Tubeaxial 24VDC Square - 60mm L x 60mm H Ball 38.4 CFM (1.08m³/min) 4 Wire Leads

Documents

Technical documentation and resources

AFB0624EH-SP50 Spec Sheet

Datasheet

Fans, Blowers CSA Cert

Fans VDE Cert

Fans, Electric - Component UL Cert

Related Document

Specification	AFB0624EH-SP50	AFB0624 Series

Air Flow	1.08 m³/min	0.325 - 1.08 mł/min
Air Flow	38.4 CFM	11.6 - 38.4 CFM
Air Flow	-	27.6 CFM
Approval Agency	UL, CE, VDE, CSA	UL, CE, VDE, CSA
Bearing Type	Ball	Ball
Current Rating (Amps)	0.24 A	0.09 - 140 A
Fan Type	Tubeaxial	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	Locked Rotor Sensor, Speed Sensor (Tach), Locked Rotor Protection, PWM Control
Ingress Protection	-	IP55 - Dust Protected, Water Resistant
Lifetime @ Temp.	70000 Hrs	70000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	46.5 dB	24 - 46.5 dB(A)
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-10 °C	-10 °C
Operating Temperature [Min]	-10 °C	-10 °C
Power (Watts)	-	1.2 - 720 W
RPM	6800 RPM	3000 - 6800 RPM
Size / Dimension [x]	60 mm	60 mm
Size / Dimension [y]	60 mm	60 mm
Static Pressure	0.544 in H2O	0.087 - 0.544 in H2O
Static Pressure	135.5 Pa	21.7 - 135.5 Pa
Termination	4 Wire Leads	3 Wire Leads, 2 Wire Leads, 4 Wire Leads
Voltage - Rated	24 VDC	24 VDC
Voltage Range [Max]	26.4 VDC	26.4 - 27.6 VDC
Voltage Range [Min]	21.6 VDC	14 - 21.6 VDC
Weight	80 g	33.56 - 80 g
Weight	0.176 lb	0.074 - 0.176 lb
Width	-	15 mm
Width [y]	25.4 mm	13 - 25.4 mm

Part

Size / Dimension [x]

Size / Dimension [y]

Weight

Static Pressure

Voltage Range [Max]

Voltage Range [Min]

Approval Agency

Fan Type

Features

Lifetime @ Temp.

Current Rating (Amps)

Air Flow

RPM

Voltage - Rated

Operating Temperature [Max]

Operating Temperature [Min]

Material - Blade

Termination

Material - Frame

Power (Watts)

Noise

Width [y]

Bearing Type

Air Flow

Ingress Protection

Width [x]

Delta Electronics

AFB0624VHD-R00

60 mm

62.14 g

0.137 lb

0.275 in H2O

68.6 Pa

27.6 VDC

14 VDC

CE, CSA, UL, VDE

Tubeaxial

Locked Rotor Sensor

70000 Hrs

0.09 A

19.8 CFM

0.554 mł/min

4800 RPM

24 VDC

70 °C

-10 °C

Plastic

3 Wire Leads

Plastic

2.16 W

33 dB(A)

20 mm

Ball

Delta Electronics

AFB0624HH-A

60 mm

80 g

0.176 lb

0.294 in H2O

73.2 Pa

27.6 VDC

14 VDC

CE, CSA, UL, VDE

Tubeaxial

70000 Hrs

110 mA

0.773 mł/min

5000 RPM

24 VDC

70 °C

-10 °C

Plastic

2 Wire Leads

Plastic

2.64 W

40 dB(A)

25.4 mm

Ball

27.6 CFM

Delta Electronics

AFB0624EHDC9

60 mm

80 g

0.176 lb

0.544 in H2O

135.5 Pa

27.6 VDC

14 VDC

CE, CSA, UL, VDE

Tubeaxial

Locked Rotor Sensor

70000 Hrs

0.24 A

38.4 CFM

1.08 m³/min

6800 RPM

24 VDC

70 °C

-10 °C

Plastic

3 Wire Leads

Plastic

46.5 dB

25.4 mm

Ball

IP55 - Dust Protected, Water Resistant

Delta Electronics

AFB0624VHC

60 mm

33.56 g

0.074 lb

0.252 in H2O

62.8 Pa

27.6 VDC

14 VDC

CE, CSA, UL, VDE

Tubeaxial

70000 Hrs

120 mA

27.7 CFM

0.776 mł/min

5400 RPM

24 VDC

70 °C

-10 °C

Plastic

2 Wire Leads

Plastic

2.88 W

38 dB(A)

13 mm

Ball

Delta Electronics

AFB0624VHD-F00

60 mm

62.14 g

0.137 lb

0.275 in H2O

68.6 Pa

27.6 VDC

14 VDC

CE, CSA, UL, VDE

Tubeaxial

Locked Rotor Protection, Speed Sensor (Tach)

70000 Hrs

0.09 A

19.8 CFM

0.554 mł/min

4800 RPM

24 VDC

70 °C

-10 °C

Plastic

3 Wire Leads

Plastic

2.16 W

33 dB(A)

20 mm

Ball

Delta Electronics

AFB0624HB

60 mm

44.45 g

0.098 lb

0.155 in H2O

38.6 Pa

27.6 VDC

14 VDC

CE, CSA, UL, VDE

Tubeaxial

70000 Hrs

15.4 CFM

0.431 m³/min

4000 RPM

24 VDC

70 °C

-10 °C

Plastic

2 Wire Leads

Plastic

1.92 W

32 dB

Ball

15 mm

Delta Electronics

AFB0624LB

60 mm

44.45 g

0.098 lb

0.087 in H2O

21.7 Pa

27.6 VDC

14 VDC

CE, CSA, UL, VDE

Tubeaxial

70000 Hrs

40 mA

11.6 CFM

0.325 mł/min

3000 RPM

24 VDC

70 °C

-10 °C

Plastic

2 Wire Leads

Plastic

24 dB

Ball

15 mm

Delta Electronics

AFB0624MBAV8

60 mm

44.45 g

0.098 lb

0.119 in H2O

29.6 Pa

27.6 VDC

14 VDC

CE, CSA, UL, VDE

Tubeaxial

Locked Rotor Sensor

70000 Hrs

60 mA

13.5 CFM

0.378 m³/min

3500 RPM

24 VDC

70 °C

-10 °C

Plastic

3 Wire Leads

Plastic

1.44 W

29 dB(A)

Ball

15 mm

Delta Electronics

AFB0624EH-SP50

60 mm

80 g

0.176 lb

0.544 in H2O

135.5 Pa

26.4 VDC

21.6 VDC

CE, CSA, UL, VDE

Tubeaxial

Locked Rotor Protection, PWM Control, Speed Sensor (Tach)

70000 Hrs

0.24 A

38.4 CFM

1.08 m³/min

6800 RPM

24 VDC

70 °C

-10 °C

Plastic

4 Wire Leads

Plastic

46.5 dB

25.4 mm

Ball

Delta Electronics

AFB0624EH-ABR00

60 mm

80 g

0.176 lb

0.544 in H2O

135.5 Pa

27.6 VDC

14 VDC

CE, CSA, UL, VDE

Tubeaxial

Locked Rotor Sensor

70000 Hrs

0.24 A

38.4 CFM

1.08 m³/min

6800 RPM

24 VDC

70 °C

-10 °C

Plastic

3 Wire Leads

Plastic

46.5 dB

25.4 mm

Ball

Part	Size / Dimension [x]	Size / Dimension [y]	Weight	Weight	Static Pressure	Static Pressure	Voltage Range [Max]	Voltage Range [Min]	Approval Agency	Fan Type	Features	Lifetime @ Temp.	Current Rating (Amps)	Air Flow	Air Flow	RPM	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Material - Blade	Termination	Material - Frame	Power (Watts)	Noise	Width [y]	Bearing Type	Air Flow	Ingress Protection	Width [x]
Delta Electronics AFB0624VHD-R00	60 mm	60 mm	62.14 g	0.137 lb	0.275 in H2O	68.6 Pa	27.6 VDC	14 VDC	CE, CSA, UL, VDE	Tubeaxial	Locked Rotor Sensor	70000 Hrs	0.09 A	19.8 CFM	0.554 mł/min	4800 RPM	24 VDC	70 °C	70 °C	-10 °C	-10 °C	Plastic	3 Wire Leads	Plastic	2.16 W	33 dB(A)	20 mm	Ball
Delta Electronics AFB0624HH-A	60 mm	60 mm	80 g	0.176 lb	0.294 in H2O	73.2 Pa	27.6 VDC	14 VDC	CE, CSA, UL, VDE	Tubeaxial		70000 Hrs	110 mA		0.773 mł/min	5000 RPM	24 VDC	70 °C	70 °C	-10 °C	-10 °C	Plastic	2 Wire Leads	Plastic	2.64 W	40 dB(A)	25.4 mm	Ball	27.6 CFM
Delta Electronics AFB0624EHDC9	60 mm	60 mm	80 g	0.176 lb	0.544 in H2O	135.5 Pa	27.6 VDC	14 VDC	CE, CSA, UL, VDE	Tubeaxial	Locked Rotor Sensor	70000 Hrs	0.24 A	38.4 CFM	1.08 m³/min	6800 RPM	24 VDC	70 °C	70 °C	-10 °C	-10 °C	Plastic	3 Wire Leads	Plastic		46.5 dB	25.4 mm	Ball		IP55 - Dust Protected, Water Resistant
Delta Electronics AFB0624VHC	60 mm	60 mm	33.56 g	0.074 lb	0.252 in H2O	62.8 Pa	27.6 VDC	14 VDC	CE, CSA, UL, VDE	Tubeaxial		70000 Hrs	120 mA	27.7 CFM	0.776 mł/min	5400 RPM	24 VDC	70 °C	70 °C	-10 °C	-10 °C	Plastic	2 Wire Leads	Plastic	2.88 W	38 dB(A)	13 mm	Ball
Delta Electronics AFB0624VHD-F00	60 mm	60 mm	62.14 g	0.137 lb	0.275 in H2O	68.6 Pa	27.6 VDC	14 VDC	CE, CSA, UL, VDE	Tubeaxial	Locked Rotor Protection, Speed Sensor (Tach)	70000 Hrs	0.09 A	19.8 CFM	0.554 mł/min	4800 RPM	24 VDC	70 °C	70 °C	-10 °C	-10 °C	Plastic	3 Wire Leads	Plastic	2.16 W	33 dB(A)	20 mm	Ball
Delta Electronics AFB0624HB	60 mm	60 mm	44.45 g	0.098 lb	0.155 in H2O	38.6 Pa	27.6 VDC	14 VDC	CE, CSA, UL, VDE	Tubeaxial		70000 Hrs		15.4 CFM	0.431 m³/min	4000 RPM	24 VDC	70 °C	70 °C	-10 °C	-10 °C	Plastic	2 Wire Leads	Plastic	1.92 W	32 dB		Ball			15 mm
Delta Electronics AFB0624LB	60 mm	60 mm	44.45 g	0.098 lb	0.087 in H2O	21.7 Pa	27.6 VDC	14 VDC	CE, CSA, UL, VDE	Tubeaxial		70000 Hrs	40 mA	11.6 CFM	0.325 mł/min	3000 RPM	24 VDC	70 °C	70 °C	-10 °C	-10 °C	Plastic	2 Wire Leads	Plastic		24 dB		Ball			15 mm
Delta Electronics AFB0624MBAV8	60 mm	60 mm	44.45 g	0.098 lb	0.119 in H2O	29.6 Pa	27.6 VDC	14 VDC	CE, CSA, UL, VDE	Tubeaxial	Locked Rotor Sensor	70000 Hrs	60 mA	13.5 CFM	0.378 m³/min	3500 RPM	24 VDC	70 °C	70 °C	-10 °C	-10 °C	Plastic	3 Wire Leads	Plastic	1.44 W	29 dB(A)		Ball			15 mm
Delta Electronics AFB0624EH-SP50	60 mm	60 mm	80 g	0.176 lb	0.544 in H2O	135.5 Pa	26.4 VDC	21.6 VDC	CE, CSA, UL, VDE	Tubeaxial	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	70000 Hrs	0.24 A	38.4 CFM	1.08 m³/min	6800 RPM	24 VDC	70 °C	70 °C	-10 °C	-10 °C	Plastic	4 Wire Leads	Plastic		46.5 dB	25.4 mm	Ball
Delta Electronics AFB0624EH-ABR00	60 mm	60 mm	80 g	0.176 lb	0.544 in H2O	135.5 Pa	27.6 VDC	14 VDC	CE, CSA, UL, VDE	Tubeaxial	Locked Rotor Sensor	70000 Hrs	0.24 A	38.4 CFM	1.08 m³/min	6800 RPM	24 VDC	70 °C	70 °C	-10 °C	-10 °C	Plastic	3 Wire Leads	Plastic		46.5 dB	25.4 mm	Ball
