824-22-027-00-001000
ActiveMill-Max Manufacturing Corp.

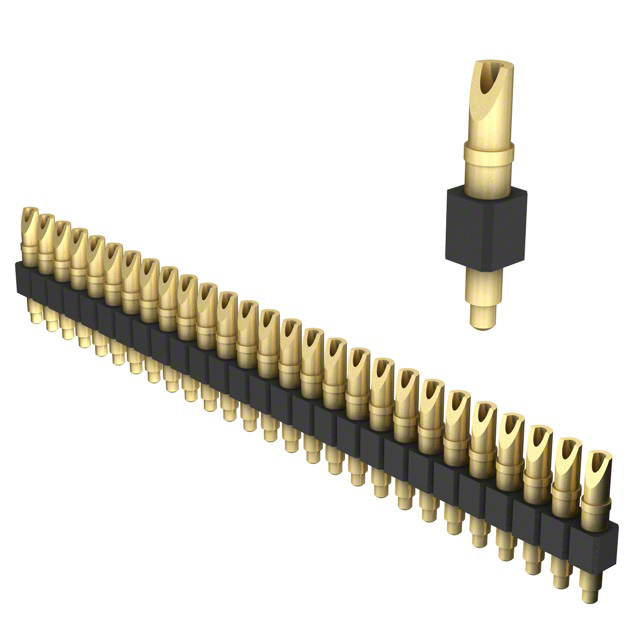

CONN SPRING PISTON 27POS SLD PCB
824-22-027-00-001000
ActiveMill-Max Manufacturing Corp.
CONN SPRING PISTON 27POS SLD PCB
Description
General part information
824-22 Series
27 Position Spring Piston Connector Through Hole, Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | 824-22-027-00-001000 |
|---|---|
| Connector Type | Piston |
| Contact Finish | Gold |
| Contact Finish Thickness | 20 µin |
| Material | Beryllium Copper |
| Mounting Type | Solder Cup, Through Hole |
| Number of Contacts | 27 |
| Number of Rows | 1 |
| Pitch | 0.1 in |
