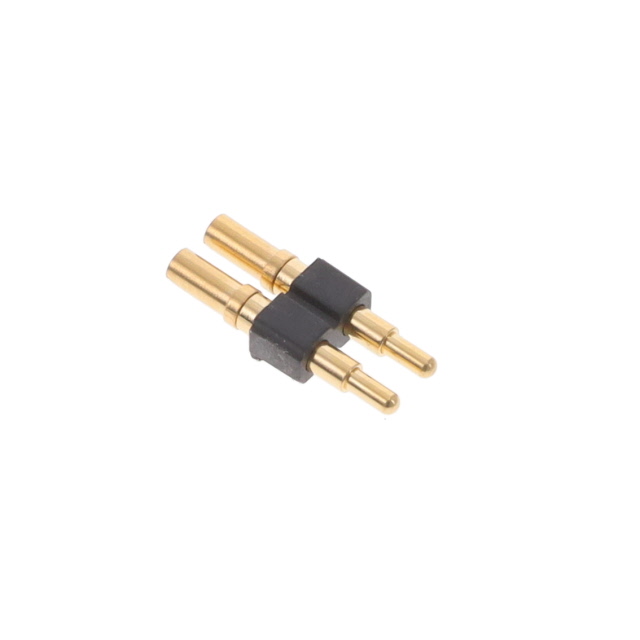

824-22-002-00-005000
ActiveMill-Max Manufacturing Corp.
CONN SPRING PISTON 2POS SLD PCB
Deep-Dive with AI
Search across all available documentation for this part.
824-22-002-00-005000
ActiveMill-Max Manufacturing Corp.
CONN SPRING PISTON 2POS SLD PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 824-22-002-00-005000 |
|---|---|
| Connector Type | Piston |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.51 µm |
| Contact Finish Thickness | 20 µin |
| Material | Beryllium Copper |
| Mounting Type | Solder Cup, Through Hole |
| Number of Rows | 1 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.75 | |
| 10 | $ 2.50 | |||
| 100 | $ 2.20 | |||
| 500 | $ 1.87 | |||
| 1000 | $ 1.60 | |||
| 5000 | $ 1.43 | |||
Description
General part information
824-22 Series
2 Position Spring Piston Connector Through Hole, Solder Cup
Documents
Technical documentation and resources
No documents available
