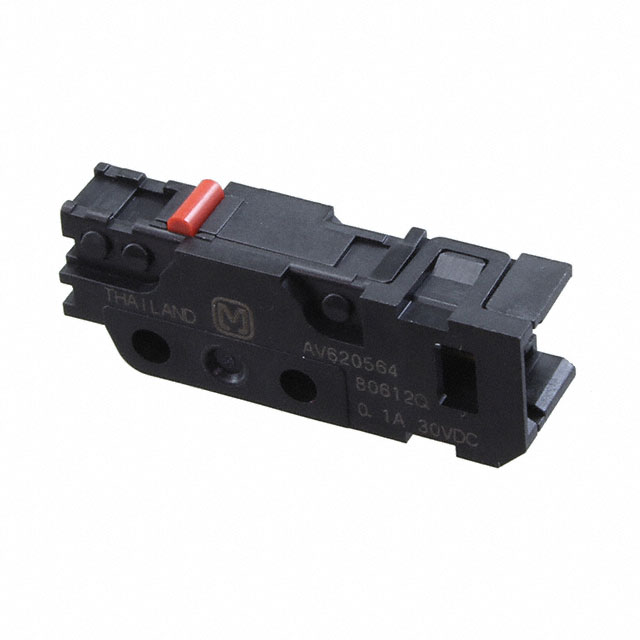

AV620564

Active

Panasonic Electric Works

SWITCH SNAP ACT SPST-NC 0.1A 30V

Search across all available documentation for this part.

Active

Panasonic Electric Works

SWITCH SNAP ACT SPST-NC 0.1A 30V

Technical Specifications

Parameters and characteristics for this part

Part	Operating Force	Mechanical Life	Actuator Type	Differential Travel	Differential Travel	Operating Position	Operating Position	Overtravel	Overtravel	Voltage Rating - DC	Circuit	Electrical Life	Switch Function	Current Rating (Amps)	Ingress Protection	Termination Style	Mounting Type	Pretravel	Pretravel	Operating Temperature [Min]	Operating Temperature [Max]	Release Force
Panasonic Electric Works AV6205643	153 gf	500000 Cycles	Round (Pin Plunger)	0.1 mm	0.004 in	8.4 mm	0.33 in	0.4 mm	0.015 "	30 V	SPST-NC	200000 Cycles	On-Mom	100 mA	IP40	Connector	Chassis Mount	0.024 in	0.6 mm	-25 °C	85 °C	25 gf
Panasonic Electric Works AV620564	153 gf	500000 Cycles	Round (Pin Plunger)	0.1 mm	0.004 in	8.4 mm	0.33 in	0.4 mm	0.015 "	30 V	SPST-NC	200000 Cycles	On-Mom	100 mA	IP40	Connector	Chassis Mount	0.024 in	0.6 mm	-25 °C	85 °C	25 gf

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPST-NC Chassis Mount

Technical documentation and resources

No documents available
