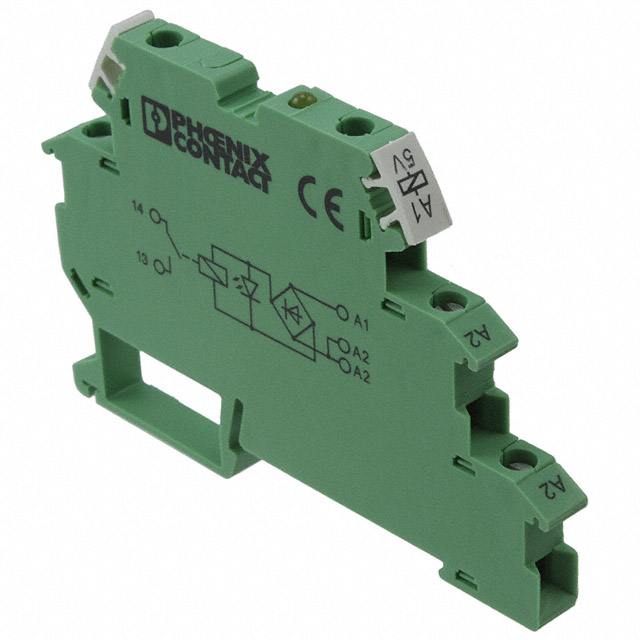

2941170

Active

Phoenix Contact

RELAY GEN PURPOSE SPST 3A 5V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE SPST 3A 5V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPST-NO (1 Form A) 5VAC/DC Coil DIN Rail

Technical documentation and resources

Part	Contact Material	Coil Voltage	Coil Type	Contact Rating (Current)	Contact Form	Operating Temperature [Max]	Operating Temperature [Min]	Release Time	Operate Time	Mounting Type	Termination Style	Coil Current	Switching Voltage	Relay Type
Phoenix Contact 2941154	Silver Nickel (AgNi)	24 VAC	Non Latching	3 A	SPST-NO (1 Form A)	50 °C	-20 C	15 ms	5 ms	DIN Rail	Screw Terminal	6.5 mA	250 VAC, 250 VDC	General Purpose
Phoenix Contact 2941183	Silver Nickel (AgNi)	5 VAC/DC	Non Latching	3 A	SPST-NO (1 Form A)	50 °C	-20 C	15 ms	8 ms	DIN Rail	Screw Terminal	23 mA	250 VAC, 250 VDC	General Purpose
Phoenix Contact 2941170	Silver Nickel (AgNi)	5 VAC/DC	Non Latching	3 A	SPST-NO (1 Form A)	50 °C	-20 C	15 ms	8 ms	DIN Rail	Screw Terminal	23 mA	250 VAC, 250 VDC	General Purpose
