EW-06-13-G-D-400

Active

Samtec Inc.

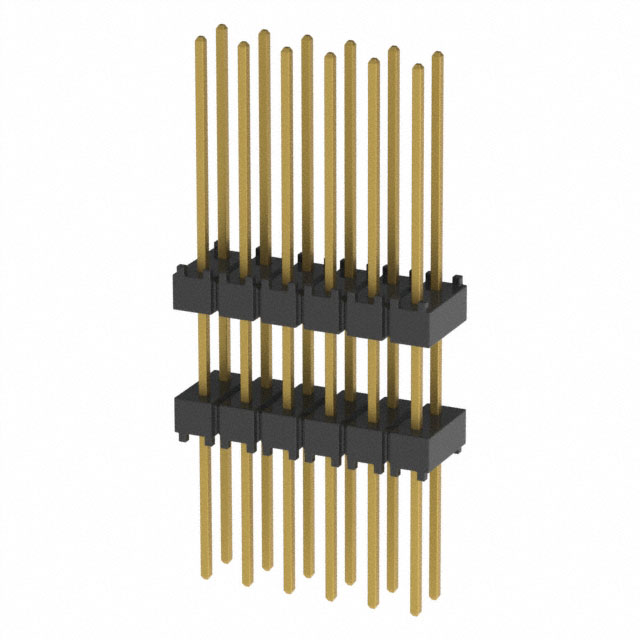

CONN HDR 12POS 0.1 STACK T/H

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EW-06-13-G-D-400

Active

Samtec Inc.

CONN HDR 12POS 0.1 STACK T/H

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EW-06-13-G-D-400

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám
Contact Finish Thickness - Post (Mating)	10 Áin
Length - Overall Pin [x]	31.242 mm
Length - Overall Pin [x]	1.23 in
Length - Post (Mating) [x]	12.7 mm
Length - Post (Mating) [x]	0.5 in
Length - Stack Height [x]	0.4 in
Length - Stack Height [x]	10.16 mm
Length - Tail	0.33 in
Length - Tail	8.382 mm
Mounting Type	Through Hole
Number of Positions	12
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Termination	Solder

EW-06-13 Series

Part	Number of Rows	Length - Stack Height [x]	Length - Stack Height [x]	Color	Row Spacing [x]	Row Spacing	Pitch [x]	Pitch [x]	Length - Tail	Length - Tail	Contact Finish - Post (Mating)	Termination	Number of Positions	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Length - Overall Pin [x]	Length - Overall Pin [x]	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Mounting Type	Length - Stack Height [z]	Length - Stack Height [z]
Samtec Inc. EW-06-13-G-D-725	2	0.725 in	18.415 mm	Black	0.1 in	2.54 mm	2.54 mm	0.1 in	0.33 in	8.382 mm	Gold	Solder	12	4.445 mm	0.175 in	31.242 mm	1.23 in	0.25 Ám	10 Áin	Through Hole
Samtec Inc. EW-06-13-G-S-220	1			Black			2.54 mm	0.1 in	0.33 in	8.382 mm	Gold	Solder	6	17.272 mm	0.68 in	31.242 mm	1.23 in	0.25 Ám	10 Áin	Through Hole
Samtec Inc. EW-06-13-G-S-750	1	0.75 in	19.05 mm	Black			2.54 mm	0.1 in	0.33 in	8.382 mm	Gold	Solder	6	3.81 mm	0.15 in	31.242 mm	1.23 in	0.25 Ám	10 Áin	Through Hole
Samtec Inc. EW-06-13-T-S-800	1	0.8 in	20.32 mm	Black			2.54 mm	0.1 in	0.33 in	8.382 mm	Tin	Solder	6	2.54 mm	0.1 in	31.242 mm	1.23 in			Through Hole
Samtec Inc. EW-06-13-G-D-400	2	0.4 in	10.16 mm	Black	0.1 in	2.54 mm	2.54 mm	0.1 in	0.33 in	8.382 mm	Gold	Solder	12	12.7 mm	0.5 in	31.242 mm	1.23 in	0.25 Ám	10 Áin	Through Hole
Samtec Inc. EW-06-13-S-S-690	1	0.69 in	17.526 mm	Black			2.54 mm	0.1 in	0.33 in	8.382 mm	Gold	Solder	6	5.334 mm	0.21 in	31.242 mm	1.23 in	0.76 µm	30 µin	Through Hole
Samtec Inc. EW-06-13-T-S-750	1	0.75 in	19.05 mm	Black			2.54 mm	0.1 in	0.33 in	8.382 mm	Tin	Solder	6	3.81 mm	0.15 in	31.242 mm	1.23 in			Through Hole
Samtec Inc. EW-06-13-F-D-710	2			Black	0.1 in	2.54 mm	2.54 mm	0.1 in	0.33 in	8.382 mm	Gold	Solder	12	4.826 mm	0.19 in	31.242 mm	1.23 in	0.076 Ám	3 Áin	Through Hole	18.034 mm	0.71 in
Samtec Inc. EW-06-13-T-D-790	2	0.79 in	20.066 mm	Black	0.1 in	2.54 mm	2.54 mm	0.1 in	0.33 in	8.382 mm	Tin	Solder	12	2.794 mm	0.11 in	31.242 mm	1.23 in			Through Hole
Samtec Inc. EW-06-13-T-D-695	2	0.695 in	17.653 mm	Black	0.1 in	2.54 mm	2.54 mm	0.1 in	0.33 in	8.382 mm	Tin	Solder	12	5.207 mm	0.205 in	31.242 mm	1.23 in			Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.94

Description

General part information

EW-06-13 Series

12 Position Header Spacer Connector 0.100" (2.54mm) Gold Through Hole
