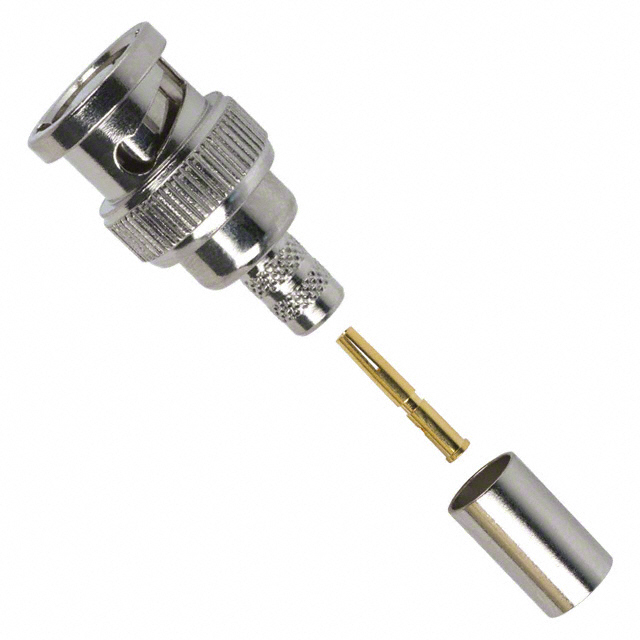

112533RP

Active

Amphenol RF

CONN BNC 0HZ TO 4GHZ 50OHM CRIMP ST CABLE MOUNT PL GOLD

Search across all available documentation for this part.

Active

Amphenol RF

CONN BNC 0HZ TO 4GHZ 50OHM CRIMP ST CABLE MOUNT PL GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	112533RP

Body Finish	Nickel
Body Material	Brass
Cable Group	Belden 9258, LMR-240
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	RP-BNC
Connector Type	Plug, Female Socket
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Frequency - Max [Max]	Connector Style	Contact Termination	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Connector Type	Center Contact Plating	Mounting Type	Voltage Rating	Dielectric Material	Number of Ports	Includes	Mating Cycles	Impedance	Cable Group	Insertion Loss	Center Contact Material	Body Material	Body Finish	Housing Color
Amphenol RF 112533RP	4 GHz	RP-BNC	Crimp	Crimp	-65 ░C	165 °C	Bayonet Lock	Female Socket Plug	Gold	Free Hanging (In-Line)	500 V	Polytetrafluoroethylene (PTFE)	1	1 Connector 1 Contact 1 Ferrule	500	50 Ohms	Belden 9258 LMR-240	0.2 dB	Phosphor Bronze	Brass	Nickel	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 10.53

General part information

RP-BNC Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
