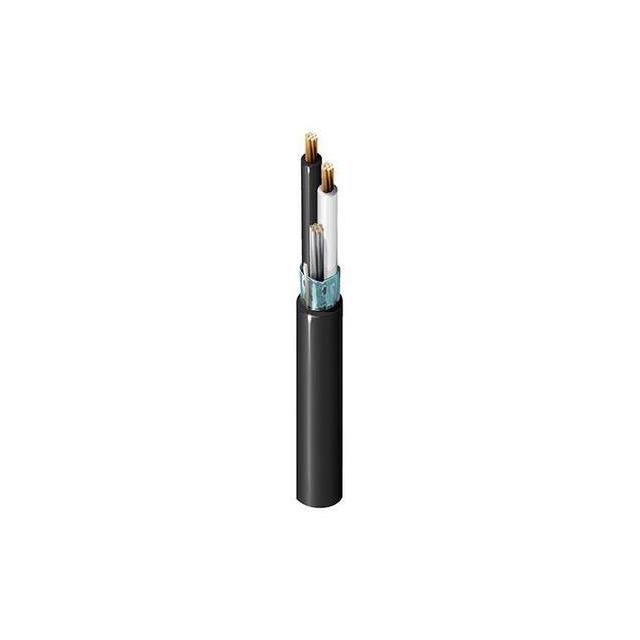

1063A 01010000

Active

Belden Inc.

MULTI-PAIR 4COND 18AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 4COND 18AWG

Technical Specifications

Parameters and characteristics for this part

Specification	1063A 01010000

Cable Type	Multi-Pair
Conductor Insulation	Polyamide (PA), Nylon, Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	26 AWG
Conductor Strand [custom]	7
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	10.29 mm
Jacket (Insulation) Diameter [diameter]	0.405 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.194 mm
Jacket (Insulation) Thickness	0.047 in
Jacket Color	Black
Length	3048 m
Length [x]	10000 ft
Number of Conductors	4
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Wire Gauge	18 AWG

MULTI-PAIR 4COND 18AWG

Part	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Features	Conductor Strand [custom]	Conductor Strand [custom]	Shield Type	Cable Type	Conductor Material	Length	Length [x]	Wire Gauge	Shield Material	Shield Coverage	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color
Belden Inc. 1063A 01010000	Nylon, Poly-Vinyl Chloride (PVC), Polyamide (PA)	1.194 mm	0.047 in	Poly-Vinyl Chloride (PVC)	Drain Wire, Rip Cord	26 AWG	7	Foil	Multi-Pair	Copper, Bare	3048 m	10000 ft	18 AWG	Aluminum	100 %	4	10.29 mm	0.405 in	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	10000	$ 1.89

General part information

4 (2 Pair) Conductor Multi-Pair Cable Black 18 AWG Foil 10000' (3048.0m)
