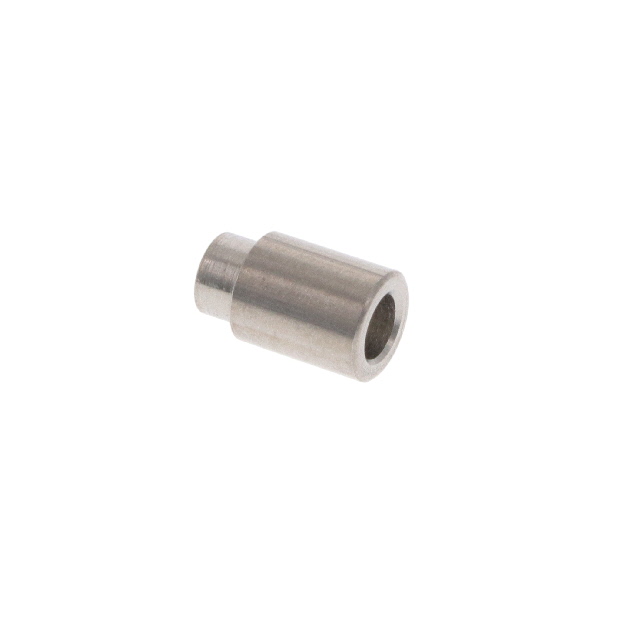

1534-B-6-SS-20
ActiveRAF Electronic Hardware
1/4 RD X 5/16 X .140 ID
Deep-Dive with AI
Search across all available documentation for this part.
1534-B-6-SS-20
ActiveRAF Electronic Hardware
1/4 RD X 5/16 X .140 ID
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1534-B-6-SS-20 |
|---|---|
| Between Board Height | 7.94 mm |
| Between Board Height | 0.313 " |
| Diameter - Inside [diameter] | 0.14 in |
| Diameter - Inside [diameter] | 3.56 mm |
| Diameter - Outside [diameter] | 6.35 mm |
| Diameter - Outside [diameter] | 0.25 in |
| Diameter - Outside [diameter] | 0.25 in |
| Gender | Swage, Female |
| Length - Overall [x] | 0.418 in |
| Length - Overall [x] | 10.61 mm |
| Material | Stainless Steel |
| Plating | Passivated |
| Threaded/Unthreaded | Unthreaded |
| Type | Round Spacer |
1534-B Series
| Part | Length - Overall [x] | Length - Overall [x] | Diameter - Outside [diameter] | Diameter - Outside [diameter] | Diameter - Outside [diameter] | Diameter - Inside [diameter] | Diameter - Inside [diameter] | Type | Plating | Between Board Height | Between Board Height | Threaded/Unthreaded | Gender | Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RAF Electronic Hardware | 0.418 in | 10.61 mm | 6.35 mm | 0.25 in | 0.25 in | 0.115 in | 2.92 mm | Round Spacer | Nickel | 7.94 mm | 0.313 " | Unthreaded | Female Swage | Brass |
RAF Electronic Hardware | 0.418 in | 10.61 mm | 6.35 mm | 0.25 in | 0.25 in | 0.14 in | 3.56 mm | Round Spacer | Passivated | 7.94 mm | 0.313 " | Unthreaded | Female Swage | Stainless Steel |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.30 | |
| 5 | $ 1.08 | |||
| 10 | $ 0.97 | |||
| 25 | $ 0.87 | |||
| 50 | $ 0.78 | |||
Description
General part information
1534-B Series
Round Spacer Unthreaded Stainless Steel 0.313" (7.94mm)
Documents
Technical documentation and resources
No documents available
