BU-112-0

Active

MUELLER ELECTRIC

MINI ALLIGATOR CLIP, 16 MM, 30 A, BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

BU-112-0

Active

MUELLER ELECTRIC

MINI ALLIGATOR CLIP, 16 MM, 30 A, BLACK

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.14
		10	$ 2.56
		100	$ 2.44
		500	$ 2.36
		1000	$ 2.31
Newark	Each	100	$ 3.33
		500	$ 3.12
		1000	$ 2.87
		2500	$ 2.62

Description

General part information

BU-112 Series

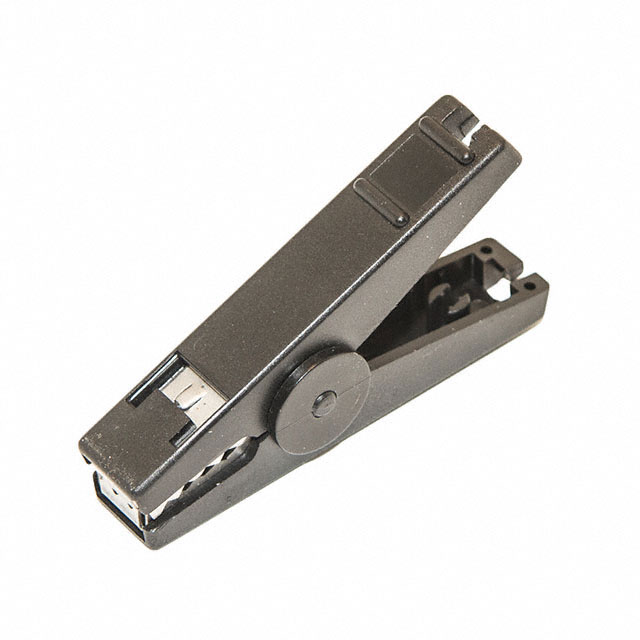

The BU-112-0 from Mueller Electric is an insulated mini auxiliary clip. It has built-in male 0.25" x 0.032" quick connect terminal and custom wire routing that acts as a strain relief.

Specification	BU-112-0	BU-112 Series

Color	Black	Green, Black, Red
Current Rating (Amps)	30 A	30 A
Insulation	Insulated	Insulated
Jaw Opening	0.625 "	0.625 "
Jaw Opening	15.88 mm	15.88 mm
Length	0.08 m	0.08 m
Length	3.15 "	3.15 "
Material	Stainless Steel	Stainless Steel
Material - Insulation	Nylon	Nylon
Quantity	1 Box	1 Box
Termination	0.25 in	0.25 in
Termination	6.3 mm	6.3 mm
Termination	Quick Connect	Quick Connect

Part	Jaw Opening	Jaw Opening	Color	Length	Length	Quantity	Material - Insulation	Insulation	Current Rating (Amps)	Termination	Termination	Termination	Material
MUELLER ELECTRIC BU-112-5	0.625 "	15.88 mm	Green	0.08 m	3.15 "	1 Box	Nylon	Insulated	30 A	0.25 in	6.3 mm	Quick Connect	Stainless Steel
MUELLER ELECTRIC BU-112-0	0.625 "	15.88 mm	Black	0.08 m	3.15 "	1 Box	Nylon	Insulated	30 A	0.25 in	6.3 mm	Quick Connect	Stainless Steel
MUELLER ELECTRIC BU-112-2	0.625 "	15.88 mm	Red	0.08 m	3.15 "	1 Box	Nylon	Insulated	30 A	0.25 in	6.3 mm	Quick Connect	Stainless Steel
