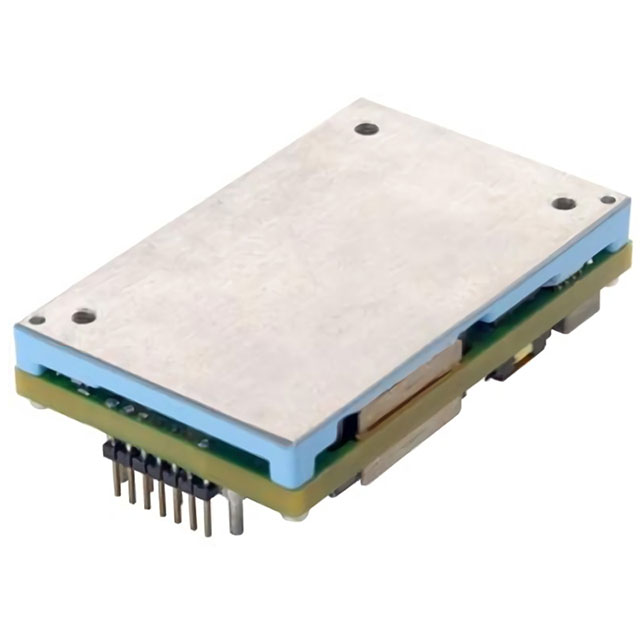

Technical Specifications
Parameters and characteristics for this part
| Specification | QSVW050A0B641-HZ |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 50 A |
| Efficiency | 96 % |
| Features | OTP, Remote On/Off, OVP, UVLO, OCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Quarter Brick |
| Power (Watts) | 600 W |
| Size / Dimension [x] | 58.4 mm |
| Size / Dimension [x] | 2.3 in |
| Size / Dimension [y] | 36.8 mm |
| Size / Dimension [y] | 1.45 in |
| Size / Dimension [z] | 13.7 mm |
| Size / Dimension [z] | 0.54 in |
| Supplier Device Package | Quarter Brick |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 2250 VDC |
| Voltage - Output 1 | 12 V |
QSD(V)W050A0B Series
Isolated DC/DC Converters - Through Hole 600W 36-75Vin 12V 50A TH Neg Logic
| Part | Voltage - Output 1 | Mounting Type | Current - Output (Max) [Max] | Voltage - Input (Max) [Max] | Efficiency | Power (Watts) | Voltage - Isolation | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Applications | Type | Features | Number of Outputs | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Voltage - Input (Min) [Min] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
OmniOn Power™ | 12 V | Through Hole | 50 A | 75 V | 96 % | 600 W | 2250 VDC | 85 °C | -40 °C | Quarter Brick | ITE (Commercial) | Isolated Module | OCP OTP OVP Remote On/Off UVLO | 1 | 58.4 mm | 2.3 in | 36.8 mm | 13.7 mm | 1.45 in | 0.54 in | 36 V | Quarter Brick |
OmniOn Power™ | 12 V | Through Hole | 50 A | 75 V | 96 % | 600 W | 2250 VDC | 85 °C | -40 °C | Quarter Brick | ITE (Commercial) | Isolated Module | OCP OTP OVP Remote On/Off UVLO | 1 | 58.4 mm | 2.3 in | 36.8 mm | 13.7 mm | 1.45 in | 0.54 in | 36 V | Quarter Brick |
OmniOn Power™ | 12 V | Through Hole | 50 A | 75 V | 96 % | 600 W | 2250 VDC | 85 °C | -40 °C | Quarter Brick | ITE (Commercial) | Isolated Module | OCP OTP OVP Remote On/Off UVLO | 1 | 58.4 mm | 2.3 in | 36.8 mm | 13.7 mm | 1.45 in | 0.54 in | 36 V | Quarter Brick |
OmniOn Power™ | 12 V | Through Hole | 50 A | 75 V | 96 % | 600 W | 2250 VDC | 85 °C | -40 °C | Quarter Brick | ITE (Commercial) | Isolated Module | OCP OTP OVP Remote On/Off UVLO | 1 | 58.4 mm | 2.3 in | 36.8 mm | 13.7 mm | 1.45 in | 0.54 in | 36 V | Quarter Brick |
OmniOn Power™ | 12 V | Through Hole | 50 A | 75 V | 96 % | 600 W | 2250 VDC | 85 °C | -40 °C | Quarter Brick | ITE (Commercial) | Isolated Module | OCP OTP OVP Remote On/Off UVLO | 1 | 58.4 mm | 2.3 in | 36.8 mm | 13.7 mm | 1.45 in | 0.54 in | 36 V | Quarter Brick |
OmniOn Power™ | 12 V | Through Hole | 50 A | 75 V | 96 % | 600 W | 2250 VDC | 85 °C | -40 °C | Quarter Brick | ITE (Commercial) | Isolated Module | OCP OTP OVP Remote On/Off UVLO | 1 | 58.4 mm | 2.3 in | 36.8 mm | 13.7 mm | 1.45 in | 0.54 in | 36 V | Quarter Brick |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
QSD(V)W050A0B Series
Isolated DC/DC Converters - Through Hole 600W 36-75Vin 12V 50A TH Neg Logic
