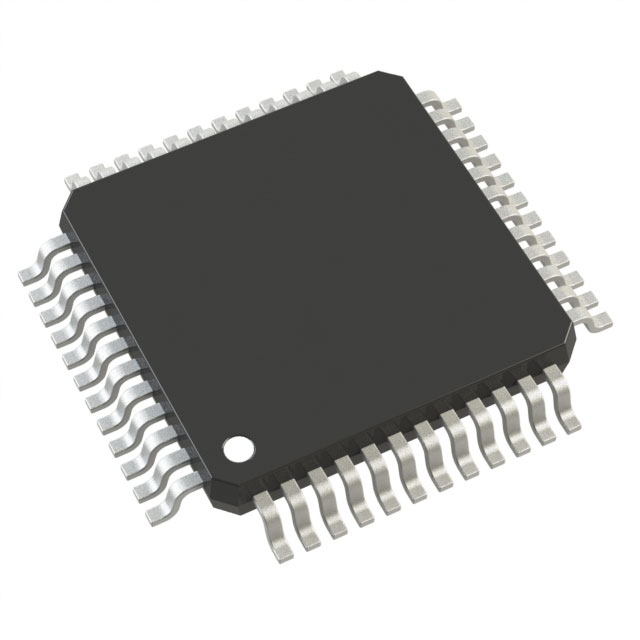

MAX11301GCM+
ActiveAnalog Devices Inc./Maxim Integrated
IC ADC/DAC 12BIT 400K 48TQFP
Deep-Dive with AI
Search across all available documentation for this part.
MAX11301GCM+
ActiveAnalog Devices Inc./Maxim Integrated
IC ADC/DAC 12BIT 400K 48TQFP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAX11301GCM+ | MAX11301 Series |
|---|---|---|
| - | - | |
| Contents | - | Board(s) |
| Data Interface | I2C | I2C |
| Function | - | ADC, DAC |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Channels | 20 | 20 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 48-TQFP Exposed Pad | 40-WFQFN Exposed Pad, 48-TQFP Exposed Pad |
| Resolution (Bits) | 12 b | 12 b |
| Secondary Attributes | - | I2C Interface(s) |
| Supplied Contents | - | Board(s) |
| Supplier Device Package | 48-TQFP-EP (7x7) | 40-TQFN, 48-TQFP-EP (7x7) |
| Type | DAC, ADC | DAC, ADC, Data Acquisition |
| Utilized IC / Part | - | MAX11301 |
| Voltage - Supply | 5 V | 5 V |
| Voltage - Supply [Max] | 5.5 V | 5.5 V |
| Voltage - Supply [Min] | 1.62 V | 1.62 V |
| Voltage Supply Source | Analog and Digital | Analog and Digital |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 16.56 | |
| 10 | $ 13.14 | |||
| 25 | $ 12.28 | |||
| 80 | $ 9.77 | |||
| 100 | $ 11.34 | |||
| 230 | $ 8.98 | |||
| 250 | $ 10.90 | |||
| 440 | $ 8.59 | |||
| 500 | $ 10.62 | |||
MAX11301 Series
IC ADC/DAC 12BIT 400K 40TQFN
| Part | Number of Channels | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Type | Data Interface | Supplier Device Package | Resolution (Bits) | Voltage Supply Source | Voltage - Supply | Voltage - Supply [Min] | Voltage - Supply [Max] | Mounting Type | Contents | Utilized IC / Part | Secondary Attributes | Supplied Contents | Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAX11301GTL+ | 20 | -40 °C | 105 ░C | 40-WFQFN Exposed Pad | ADC, DAC | I2C | 40-TQFN | 12 b | Analog and Digital | 5 V | 1.62 V | 5.5 V | Surface Mount | |||||
Analog Devices Inc./Maxim Integrated MAX11301GTL+T | ||||||||||||||||||
Analog Devices Inc./Maxim Integrated MAX11301EVKIT# | Data Acquisition | Board(s) | MAX11301 | I2C Interface(s) | Board(s) | ADC, DAC | ||||||||||||
Analog Devices Inc./Maxim Integrated MAX11301GCM+ | 20 | -40 °C | 105 ░C | 48-TQFP Exposed Pad | ADC, DAC | I2C | 48-TQFP-EP (7x7) | 12 b | Analog and Digital | 5 V | 1.62 V | 5.5 V | Surface Mount | |||||
Analog Devices Inc./Maxim Integrated MAX11301GTL+T | 20 | -40 °C | 105 ░C | 40-WFQFN Exposed Pad | ADC, DAC | I2C | 40-TQFN | 12 b | Analog and Digital | 5 V | 1.62 V | 5.5 V | Surface Mount |
Description
General part information
MAX11301 Series
ADC, DAC 12 b 400k I2C 48-TQFP-EP (7x7)
Documents
Technical documentation and resources
No documents available
