R110083120

Active

Radiall USA, Inc.

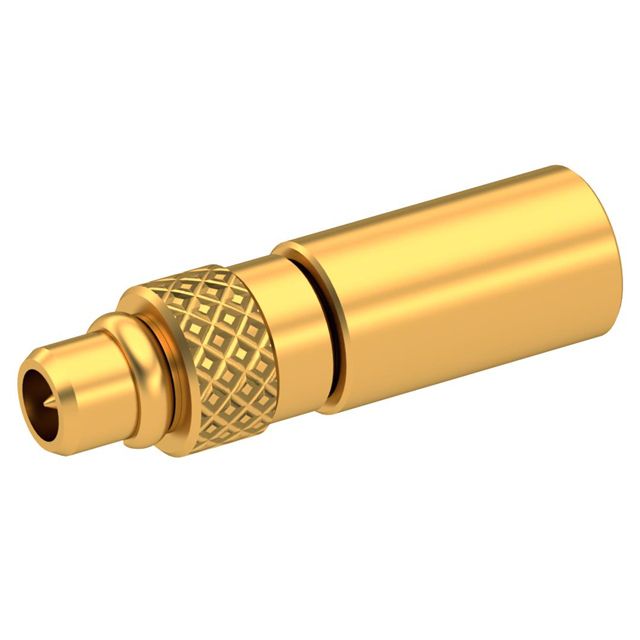

MMCX / STRAIGHT PLUG FULL CRIMP

Search across all available documentation for this part.

Active

Radiall USA, Inc.

MMCX / STRAIGHT PLUG FULL CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	R110083120

Body Finish	Gold
Body Material	Brass
Cable Group	316, RG-188
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	MMCX
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	335 V

Part	Housing Color	Mounting Type	Connector Type	Body Material	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Center Contact Plating	Frequency - Max [Max]	Mating Cycles	Cable Group	Shield Termination	Body Finish	Dielectric Material	Center Contact Material	Number of Ports	Voltage Rating	Contact Termination	Connector Style	Impedance
Radiall USA, Inc. R110083120	Gold	Free Hanging (In-Line)	Male Pin Plug	Brass	155 °C	-55 °C	Snap-On	Gold	6000 MHz	500	316 RG-188	Crimp	Gold	Polytetrafluoroethylene (PTFE)	Brass	1	335 V	Crimp	MMCX	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

MMCX Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
