General part information
Non-Isolated DC/DC Converters 0.3A DC/DC REG 36-72Vin 24Vout
Technical documentation and resources
Parameters and characteristics for this part

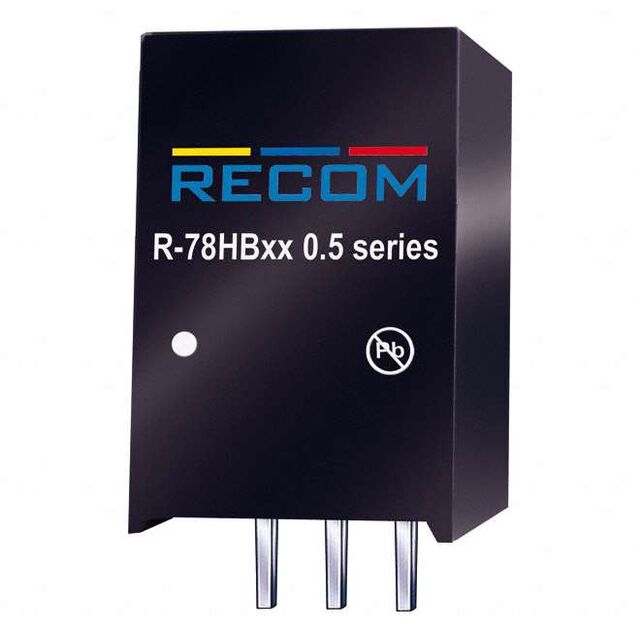

| Specification | R-78HB6.5-0.5 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 500 mA |
| Efficiency | 91 % |
| Features | OTP, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 3-SIP Module |
| Power (Watts) | 3 W |
| Size / Dimension [x] | 0.45 in |
| Size / Dimension [x] | 11.5 mm |
| Size / Dimension [y] | 8.5 mm |
| Size / Dimension [y] | 0.33 in |
| Size / Dimension [z] | 17.5 mm |
| Size / Dimension [z] | 0.69 " |
| Type | Linear Regulator Replacement |
| Voltage - Input (Max) [Max] | 72 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Output 1 | 6.5 V |
Non-Isolated DC/DC Converters 0.3A DC/DC REG 36-72Vin 24Vout
| Part | Features | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Type | Current - Output (Max) [Max] | Package / Case | Voltage - Input (Min) [Min] | Voltage - Output 1 | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Voltage - Input (Max) [Max] | Efficiency | Power (Watts) | Mounting Type | Number of Outputs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RECOM Power R-78HB6.5-0.5 | OTP, SCP | 8.5 mm | 17.5 mm | 0.45 in | 11.5 mm | 0.69 " | 0.33 in | Linear Regulator Replacement | 500 mA | 3-SIP Module | 9 V | 6.5 V | 85 °C | -40 °C | ITE (Commercial) | 72 V | 91 % | 3 W | Through Hole | 1 |
