M80-4C10242F1-01-325-01-325

Active

Harwin Inc.

MIX-TEK FEM S/BORE CRIMP W/JS

Deep-Dive with AI

DocumentsM80-0110001 M80, M83 Series Spec Sheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-4C10242F1-01-325-01-325

Cable Termination	Crimp
Color	Black
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	0.3 Ám
Contact Finish Thickness	11.8 Áin
Contact Type	Female Socket
Features	Jackscrews
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Wire Gauge [Max]	28 AWG
Wire Gauge [Min]	24 AWG
Wire Type	Discrete

M80-4C1 Series

Part	Contact Finish	Pitch [x]	Pitch [x]	Wire Type	Number of Positions	Cable Termination	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Mounting Type	Features	Color	Row Spacing	Row Spacing	Wire Gauge [Min]	Wire Gauge [Max]	Connector Type
Harwin Inc. M80-4C11405FC	Gold	0.079 in	2 mm	Discrete	14	Crimp	2	0.3 Ám	11.8 Áin	Female Socket	Free Hanging (In-Line)	Jackscrews Polarizing Key	Black	2 mm	0.079 in	24 AWG	28 AWG	Receptacle
Harwin Inc. M80-4C13442FC	Gold	0.079 in	2 mm	Discrete	34	Crimp	2	0.3 Ám	11.8 Áin	Female Socket	Free Hanging (In-Line)	Jackscrews Polarizing Key	Black	2 mm	0.079 in	24 AWG	28 AWG	Receptacle
Harwin Inc. M80-4C12005FC	Gold	0.079 in	2 mm	Discrete	20	Crimp	2	0.3 Ám	11.8 Áin	Female Socket	Free Hanging (In-Line)	Jackscrews Polarizing Key	Black	2 mm	0.079 in	24 AWG	28 AWG	Receptacle
Harwin Inc. M80-4C11005FC	Gold	0.079 in	2 mm	Discrete	10	Crimp	2	0.3 Ám	11.8 Áin	Female Socket	Free Hanging (In-Line)	Jackscrews Polarizing Key	Black	2 mm	0.079 in	24 AWG	28 AWG	Receptacle
Harwin Inc. M80-4C12605FC	Gold	0.079 in	2 mm	Discrete	26	Crimp	2	0.3 Ám	11.8 Áin	Female Socket	Free Hanging (In-Line)	Jackscrews Polarizing Key	Black	2 mm	0.079 in	24 AWG	28 AWG	Receptacle
Harwin Inc. M80-4C11205F1-02-325-00-000	Gold			Discrete	14	Crimp	2	0.3 Ám	11.8 Áin	Female Socket	Free Hanging (In-Line)	Jackscrews	Black			24 AWG	28 AWG	Receptacle
Harwin Inc. M80-4C10242F1-01-325-01-325	Gold			Discrete	4	Crimp		0.3 Ám	11.8 Áin	Female Socket	Free Hanging (In-Line)	Jackscrews	Black			24 AWG	28 AWG	Receptacle
Harwin Inc. M80-4C12642FC	Gold	0.079 in	2 mm	Discrete	26	Crimp	2	0.3 Ám	11.8 Áin	Female Socket	Free Hanging (In-Line)	Jackscrews Polarizing Key	Black	2 mm	0.079 in	24 AWG	28 AWG	Receptacle
Harwin Inc. M80-4C10605FC	Gold	0.079 in	2 mm	Discrete	6	Crimp	2	0.3 Ám	11.8 Áin	Female Socket	Free Hanging (In-Line)	Jackscrews Polarizing Key	Black	2 mm	0.079 in	24 AWG	28 AWG	Receptacle
Harwin Inc. M80-4C10442FC	Gold	0.079 in	2 mm	Discrete	4	Crimp	2	0.3 Ám	11.8 Áin	Female Socket	Free Hanging (In-Line)	Jackscrews Polarizing Key	Black	2 mm	0.079 in	24 AWG	28 AWG	Receptacle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

M80-4C1 Series

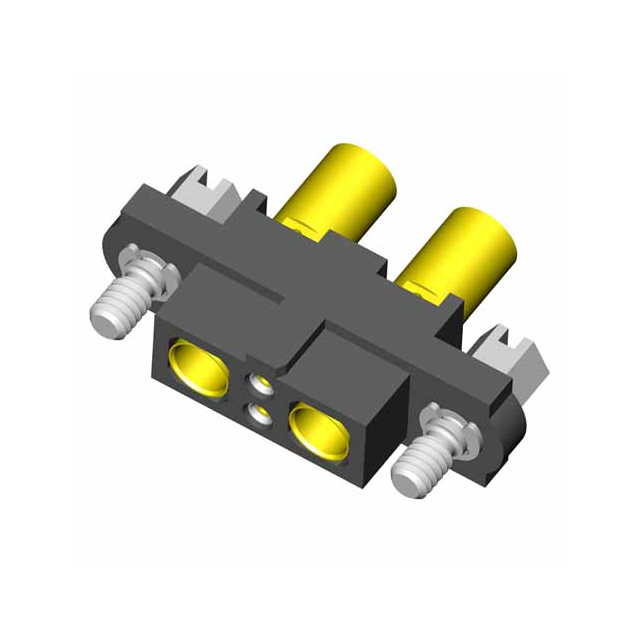

4 (2 + 2 Power) Position Rectangular Receptacle Connector Crimp Gold 24-28 AWG
