DC0011/09-TI900-0.12-0

Active

t-Global Technology

THERM PAD 19.05MMX12.7MM WHT

Search across all available documentation for this part.

Active

t-Global Technology

THERM PAD 19.05MMX12.7MM WHT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

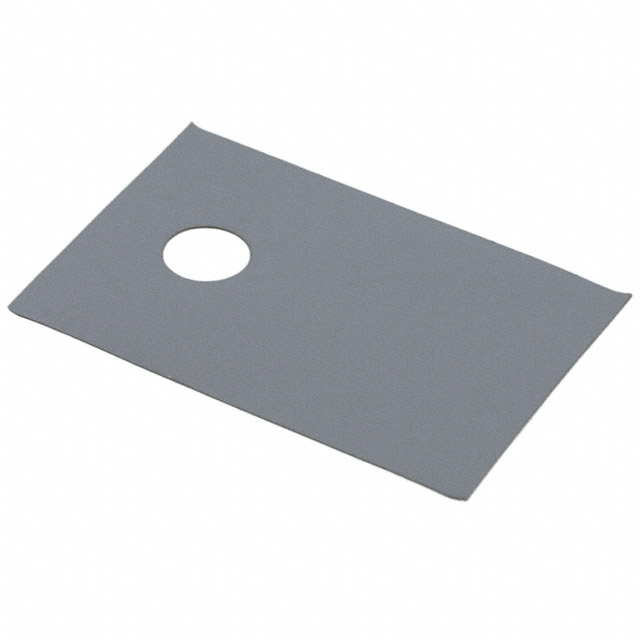

Thermal Pad White 19.05mm x 12.70mm Rectangular

Technical documentation and resources

Part	Color	Thermal Conductivity	Material	Usage	Adhesive	Shelf Life	Thickness [x]	Thickness [x]	Type	Backing, Carrier	Outline [x]	Outline [y]	Shape	Thickness [custom]	Thickness [custom]	Shelf Life Start	Thickness	Thickness
t-Global Technology DC0011/09-TI900-0.12-2A	White	1.8 W/m-K	Silicone	TO-220	Adhesive - Both Sides	24 Months	0.005 in	0.127 mm	Die-Cut Pad, Sheet	Viscose	19.05 mm	12.7 mm	Rectangular
t-Global Technology DC0011/09-TI900-0.12-0	White	1.8 W/m-K	Silicone	TO-220		24 Months	0.005 in	0.127 mm	Die-Cut Pad, Sheet	Viscose	19.05 mm	12.7 mm	Rectangular
t-Global Technology DC0011/09-TG-A486G-0.3-2A	Gray	6 W/m-K		TO-220	Adhesive - Both Sides	12 Months			Die-Cut Pad, Sheet		19.05 mm	12.7 mm	Rectangular	0.305 mm	0.012 "	Date of Purchase
t-Global Technology DC0011/09-TG-A482K-0.1-0	Red	2.3 W/m-K	Silicone	TO-220		24 Months			Die-Cut Pad, Sheet		19.05 mm	12.7 mm	Rectangular			Date of Purchase	0.1 mm	0.0039 in
t-Global Technology DC0011/09-TG-A373F-0.25-2A	Yellow	1.4 W/m-K		TO-220	Adhesive - Both Sides	12 Months			Die-Cut Pad, Sheet		19.05 mm	12.7 mm	Rectangular	0.254 mm	0.01 in
