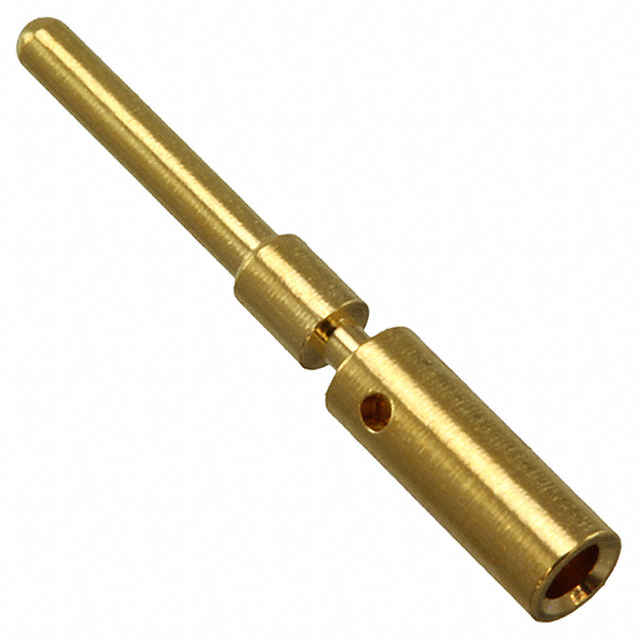

5-1437720-4

Active

TE Connectivity Raychem Cable Protection

CONTACT PIN CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5-1437720-4

Active

TE Connectivity Raychem Cable Protection

CONTACT PIN CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5-1437720-4

Contact Finish	AuCoNiP
Contact Finish Thickness [custom]	4 µm
Contact Finish Thickness [custom]	157.5 µin
Contact Material	Brass
Contact Termination	Crimp
Contact Type	Pin
Type	Signal, Machined
Wire Gauge or Range - mm²	0.5 mm²

1437720 Series

Part	Length [x]	Length [x]	2nd Connector Number of Positions Loaded	2nd Connector Mounting Type	Usage	Shielding	Color	1st Connector Type	Assembly Configuration	2nd Connector Number of Positions	1st Connector Mounting Type	Cable Material	1st Connector Number of Positions	1st Connector Gender	Cable Type	1st Connector Orientation [custom]	2nd Connector Type	1st Connector Number of Positions Loaded	Type	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Thickness	Thickness	Contact Finish	Contact Finish Thickness [custom]	Contact Finish Thickness [custom]	Contact Material	Wire Gauge or Range - mm²	Contact Type	Contact Termination	Orientation (Convert To)	Fastening Type	Ingress Protection	Mounting Feature	Includes	Convert To (Adapter End)	Number of Positions (Convert To)	Orientation (Convert From)	Convert From (Adapter End)	Features	Number of Positions (Convert From)	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Housing Material	Connector Style	Current Rating (Amps)
TE Connectivity Raychem Cable Protection 2-1437720-7	9.84 ft	3 m	All	Free Hanging (In-Line)	Industrial Environments	Unshielded	Gray	Plug	Standard	4	Free Hanging (In-Line)	Polyvinyl Chloride (PVC)	4	Female Sockets	Round	Keyed	Plug	All
TE Connectivity Raychem Cable Protection 3-1437720-4	9.84 ft	3 m	All	Free Hanging (In-Line)	Industrial Environments	Unshielded	Gray	Plug	Standard		Free Hanging (In-Line)	Polyvinyl Chloride (PVC)	7	Female Sockets	Round	Keyed	Plug	All
TE Connectivity Raychem Cable Protection 5-1437720-3																			Flat	0.63 in	16 mm	0.48 "	12.19 mm	0.138 in	3.5 mm
TE Connectivity Raychem Cable Protection 5-1437720-4																			Machined Signal							AuCoNiP	4 µm	157.5 µin	Brass	0.5 mm²	Pin	Crimp
TE Connectivity Raychem Cable Protection 5-1437720-2
TE Connectivity Raychem Cable Protection 5-1437720-6																			Machined Signal							AuCoNiP	4 µm	157.5 µin	Brass	0.5 mm²	Socket	Crimp
TE Connectivity Raychem Cable Protection 1-1437720-4						Shielded																											Keyed	Push-Pull	IP65 - Dust Tight Water Resistant	Flange	1 Adapter 1 Nut	Male Pins	5	Keyed	Female Sockets	Mounting Hardware	5	-40 °C	80 C	Silver	Copper Zinc Alloy	Gender Changer	3 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.48
		10	$ 1.35
		500	$ 1.08
		1000	$ 0.97
		5000	$ 0.87
		10000	$ 0.82

Description

General part information

1437720 Series

Pin Contact Size Crimp AuCoNiP
