S8B-XH-A-1

Active

JST Sales America Inc.

CONN HEADER R/A 8POS 2.5MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER R/A 8POS 2.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	S8B-XH-A-1

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Detent Lock
Insulation Color	Natural
Insulation Height	0.24 in
Insulation Height	6.1 mm
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder, Press-Fit
Voltage Rating	250 VDC

Part	Mounting Type	Insulation Height	Insulation Height	Contact Material	Shrouding	Number of Positions	Insulation Material	Connector Type	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Material Flammability Rating	Voltage Rating	Termination	Fastening Type	Number of Rows	Contact Shape	Style	Contact Type	Number of Positions Loaded	Insulation Color	Contact Length - Post [x]	Contact Length - Post [x]	Current Rating (Amps)
JST Sales America Inc. S8B-XH-A-1	Through Hole Right Angle	0.24 in	6.1 mm	Brass	Shrouded - 4 Wall	8	Polyamide (PA66) Nylon 6/6	Header	2.5 mm	0.098 in	-25 °C	85 °C	Tin	UL94 V-0	250 VDC	Press-Fit Solder	Detent Lock	1	Square	Board to Cable/Wire	Male Pin	All	Natural	0.134 in	3.4 mm	3 A
JST Sales America Inc. S8B-XH-A	Through Hole Right Angle	0.24 in	6.1 mm	Brass	Shrouded - 4 Wall	8	Polyamide (PA66) Nylon 6/6	Header	2.5 mm	0.098 in	-25 °C	85 °C	Tin	UL94 V-0	250 VDC	Press-Fit Solder	Detent Lock	1	Square	Board to Cable/Wire	Male Pin	All	Natural	0.134 in	3.4 mm	3 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

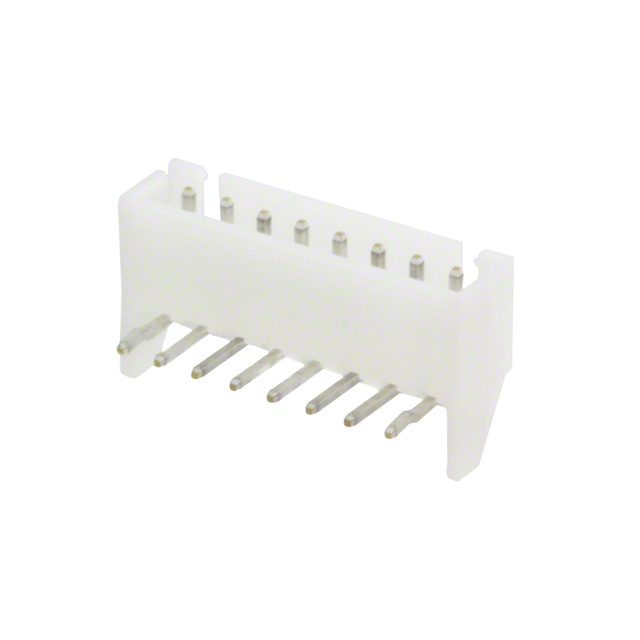

Connector Header Through Hole, Right Angle 8 position 0.098" (2.50mm)
