3403.0018.11

Active

SCHURTER Inc.

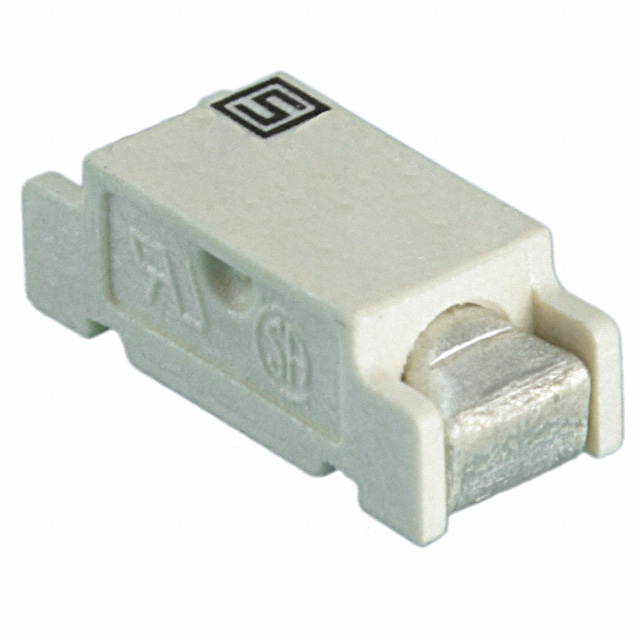

FUSE BRD MT 1.6A 250VAC/VDC 2SMD

Search across all available documentation for this part.

Active

SCHURTER Inc.

FUSE BRD MT 1.6A 250VAC/VDC 2SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3403.0018.11	3403.0018 Series

Approval Agency	cURus, VDE	cURus, VDE
Breaking Capacity @ Rated Voltage	100 A	100 A
Current Rating (Amps)	1.6 A	1.6 A
Fuse Type	Board Mount	Board Mount
Melting I˛t	-	0.84
Melting I²t	0.84	0.84
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	2-SMD, J-Lead	2-SMD, J-Lead
Response Time	Fast Blow	Fast Blow
Size / Dimension [x]	0.433 in	0.433 in
Size / Dimension [x]	11 mm	11 mm
Size / Dimension [y]	4.6 mm	4.6 mm
Size / Dimension [y]	0.181 in	0.181 in
Size / Dimension [z]	3.9 mm	3.9 mm
Size / Dimension [z]	0.154 in	0.154 in
Voltage Rating - AC	250 V	250 V
Voltage Rating - DC	250 V	250 V

FUSE BRD MT 1.6A 250VAC/VDC 2SMD

Part	Mounting Type	Approval Agency	Package / Case	Melting I²t	Voltage Rating - DC	Response Time	Breaking Capacity @ Rated Voltage	Voltage Rating - AC	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Fuse Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Melting I˛t
SCHURTER Inc. 3403.0018.11	Surface Mount	cURus, VDE	2-SMD, J-Lead	0.84	250 V	Fast Blow	100 A	250 V	1.6 A	-55 °C	125 °C	Board Mount	4.6 mm	0.181 in	0.433 in	11 mm	3.9 mm	0.154 in
SCHURTER Inc. 3403.0018.24	Surface Mount	cURus, VDE	2-SMD, J-Lead		250 V	Fast Blow	100 A	250 V	1.6 A	-55 °C	125 °C	Board Mount	4.6 mm	0.181 in	0.433 in	11 mm	3.9 mm	0.154 in	0.84

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1.6 A 250 V AC 250 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, J-Lead
