NEMA23-31-01SD-AMT112S

Active

CUI Devices

STEPPER MOTOR W/ INCREMENTAL ENC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

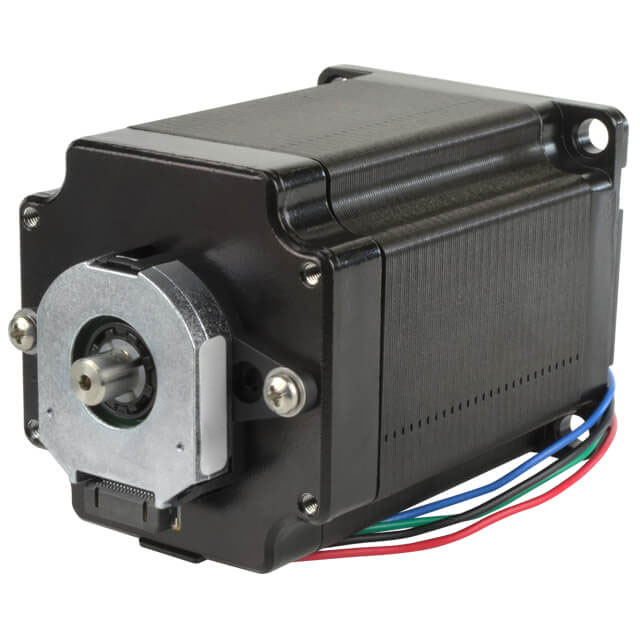

NEMA23-31-01SD-AMT112S

Active

CUI Devices

STEPPER MOTOR W/ INCREMENTAL ENC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NEMA23-31-01SD-AMT112S

Accuracy	0.2 %
Approval Agency	CE
Coil Resistance	4.5 Ohms
Coil Type	Bipolar
Current Rating (Amps)	1.4 A
Diameter - Shaft [diameter]	0.25 in
Diameter - Shaft [diameter]	6.35 mm
Features	Integrated Encoder, Flatted Shaft
Length - Shaft and Bearing	20.6 mm
Length - Shaft and Bearing [x]	0.811 in
Mounting Hole Spacing	46.2 mm
Mounting Hole Spacing	1.819 in
NEMA Frame Size	23
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-20 C
Rotor Inertia	11.4 gcm²
Size / Dimension	Square
Size / Dimension [x]	57.2 mm
Size / Dimension [x]	2.252 in
Size / Dimension [y]	57.2 mm
Size / Dimension [y]	2.252 in
Step Angle	1.8 °
Steps per Revolution	200
Termination Style	Connector
Torque - Holding (oz-in / mNm)	270 oz-in
Torque - Holding (oz-in / mNm)	1906.62 mNm
Voltage - Rated [Max]	80 V
Voltage - Rated [Min]	24 VDC

NEMA23 Series

Part	Steps per Revolution	Coil Resistance	Length - Shaft and Bearing	Length - Shaft and Bearing [x]	Accuracy	NEMA Frame Size	Step Angle	Approval Agency	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Current Rating (Amps)	Torque - Holding (oz-in / mNm)	Torque - Holding (oz-in / mNm)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated [Min]	Voltage - Rated [Max]	Features	Size / Dimension [x]	Size / Dimension	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Rotor Inertia	Coil Type	Mounting Hole Spacing	Mounting Hole Spacing	Termination Style
CUI Devices NEMA23-17-01PD-AMT112S	200	0.7 Ohms	20.6 mm	0.811 in	0.2 %	23	1.8 °	CE	0.25 in	6.35 mm	2.8 A	600.23 mNm	85 oz-in	50 °C	-20 C	24 VDC	80 V	Flatted Shaft Integrated Encoder	57.2 mm	Square	57.2 mm	2.252 in	2.252 in	3.1 gcm˛	Bipolar	46.2 mm	1.819 in	Connector
CUI Devices NEMA23-17-15SD-AMT112S	200	1.2 Ohms	20.6 mm	0.811 in	0.2 %	23	1.8 °	CE	0.25 in	6.35 mm	2.1 A	600.23 mNm	85 oz-in	50 °C	-20 C	24 VDC	80 V	Flatted Shaft Integrated Encoder	57.2 mm	Square	57.2 mm	2.252 in	2.252 in	3.1 gcm˛	Bipolar	46.2 mm	1.819 in	Connector
CUI Devices NEMA23-31-01SD-AMT112S	200	4.5 Ohms	20.6 mm	0.811 in	0.2 %	23	1.8 °	CE	0.25 in	6.35 mm	1.4 A	1906.62 mNm	270 oz-in	50 °C	-20 C	24 VDC	80 V	Flatted Shaft Integrated Encoder	57.2 mm	Square	57.2 mm	2.252 in	2.252 in	11.4 gcm²	Bipolar	46.2 mm	1.819 in	Connector
CUI Devices NEMA23-31-01PD-AMT112S	200	1.1 Ohms	20.6 mm	0.811 in	0.2 %	23	1.8 °	CE	0.25 in	6.35 mm	2.8 A	1906.62 mNm	270 oz-in	50 °C	-20 C	24 VDC	80 V	Flatted Shaft Integrated Encoder	57.2 mm	Square	57.2 mm	2.252 in	2.252 in	15.8 gcm˛	Bipolar	46.2 mm	1.819 in	Connector

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 129.76
		5	$ 119.88

Description

General part information

NEMA23 Series

Bipolar Stepper Motor Frame Size 23 200.0 Step 1.4 A 24 ~ 80VDC
