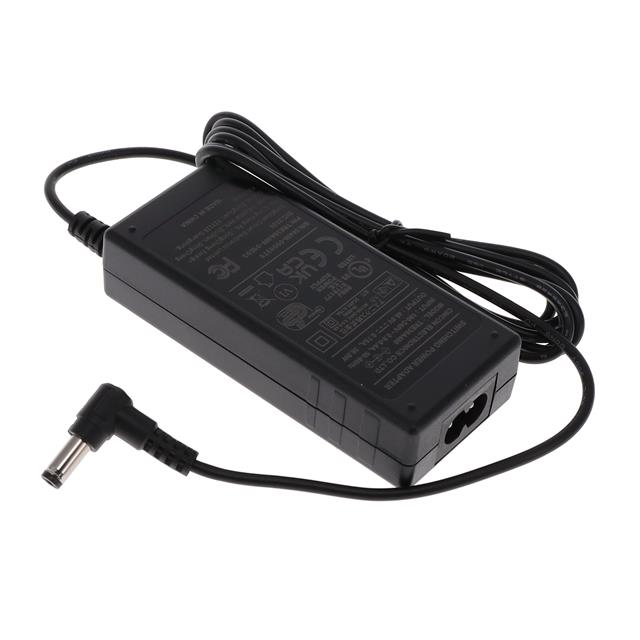

Specification	TRE36A480-01E03 VI

Applications	ITE (Commercial)
Approval Agency	FCC, cULus, CE, PSE, GS
Cord Length	70.9 in
Current - Output (Max)	750 mA
Efficiency	Level VI, CoC Tier 2
Form	Desktop (Class II)
Input Connector	IEC 320-C8
Input Type	Cord (Sold Separately)
No Load Power Consumption (Max)	75 mW
Operating Temperature (Max)	60 °C
Operating Temperature (Min)	-20 °C
Output Connector	Barrel Plug R/A
Output Connector I.D.	2.1 mm
Output Connector Length	12 mm
Output Connector O.D.	5.5 mm
Polarization	Positive Center
Power (Watts)	36 W
Region Utilized	International
Size / Dimension Height	0.89 in
Size / Dimension Length	3.94 in
Size / Dimension Width	1.77 in
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	90 V
Voltage - Output	48 V

TRE36A Series

Part	Applications	Operating Temperature (Max)	Operating Temperature (Min)	Input Type	Power (Watts)	Input Connector	Output Connector I.D.	Output Connector	Output Connector Length	Output Connector O.D.	Size / Dimension Width	Size / Dimension Height	Size / Dimension Length	Polarization	Voltage - Output	No Load Power Consumption (Max)	Efficiency	Region Utilized	Current - Output (Max)	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Cord Length	Form	Approval Agency
Cincon Electronics Co. LTD TRE36A120-01G03 VI	ITE (Commercial)	60 °C	-20 °C	Cord (Sold Separately)	30 W	IEC 320-C8	2.1 mm	Barrel Plug R/A	12 mm	5.5 mm	1.77 in	0.89 in	3.94 in	Positive Center	12 V	75 mW	CoC Tier 2 Level VI	International	2.5 A	90 V	264 V	70.9 in	Desktop (Class II)	CE cULus FCC GS PSE
Cincon Electronics Co. LTD TRE36A360-01E03 VI	ITE (Commercial)	60 °C	-20 °C	Cord (Sold Separately)	36 W	IEC 320-C8	2.1 mm	Barrel Plug R/A	12 mm	5.5 mm	1.77 in	0.89 in	3.94 in	Positive Center	36 V	75 mW	CoC Tier 2 Level VI	International	1 A	90 V	264 V	70.9 in	Desktop (Class II)	CE cULus FCC GS PSE
Cincon Electronics Co. LTD TRE36A050-01G02 VI	ITE (Commercial)	60 °C	-20 °C	Cord (Sold Separately)	25 W	IEC 320-C8	2.1 mm	Barrel Plug R/A	12 mm	5.5 mm	1.77 in	0.89 in	3.94 in	Positive Center	5 VDC	75 mW	CoC Tier 2 Level VI	International	5 A	90 V	264 V	48 in	Desktop (Class II)	CE cULus FCC GS PSE
Cincon Electronics Co. LTD TRE36A135-01G03 VI	ITE (Commercial)	60 °C	-20 °C	Cord (Sold Separately)	32 W	IEC 320-C8	2.1 mm	Barrel Plug R/A	12 mm	5.5 mm	1.77 in	0.89 in	3.94 in	Positive Center	13.5 V	75 mW	CoC Tier 2 Level VI	International	2.4 A	90 V	264 V	70.9 in	Desktop (Class II)	CE cULus FCC GS PSE
Cincon Electronics Co. LTD TRE36A090-01G03 VI	ITE (Commercial)	60 °C	-20 °C	Cord (Sold Separately)	30 W	IEC 320-C8	2.1 mm	Barrel Plug R/A	12 mm	5.5 mm	1.77 in	0.89 in	3.94 in	Positive Center	9 V	75 mW	CoC Tier 2 Level VI	International	3.3 A	90 V	264 V	70.9 in	Desktop (Class II)	CE cULus FCC GS
Cincon Electronics Co. LTD TRE36A480-01E03 VI	ITE (Commercial)	60 °C	-20 °C	Cord (Sold Separately)	36 W	IEC 320-C8	2.1 mm	Barrel Plug R/A	12 mm	5.5 mm	1.77 in	0.89 in	3.94 in	Positive Center	48 V	75 mW	CoC Tier 2 Level VI	International	750 mA	90 V	264 V	70.9 in	Desktop (Class II)	CE cULus FCC GS PSE
Cincon Electronics Co. LTD TRE36A180-01G03 VI	ITE (Commercial)	60 °C	-20 °C	Cord (Sold Separately)	36 W	IEC 320-C8	2.1 mm	Barrel Plug R/A	12 mm	5.5 mm	1.77 in	0.89 in	3.94 in	Positive Center	18 V	75 mW	CoC Tier 2 Level VI	International	2 A	90 V	264 V	70.9 in	Desktop (Class II)	CE cULus FCC GS PSE
Cincon Electronics Co. LTD TRE36A240-01G03 VI	ITE (Commercial)	60 °C	-20 °C	Cord (Sold Separately)	36 W	IEC 320-C8	2.1 mm	Barrel Plug R/A	12 mm	5.5 mm	1.77 in	0.89 in	3.94 in	Positive Center	24 V	75 mW	CoC Tier 2 Level VI	International	1.5 A	90 V	264 V	70.9 in	Desktop (Class II)	CE cULus FCC GS PSE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

TRE36A480-01E03 VI | Datasheet
