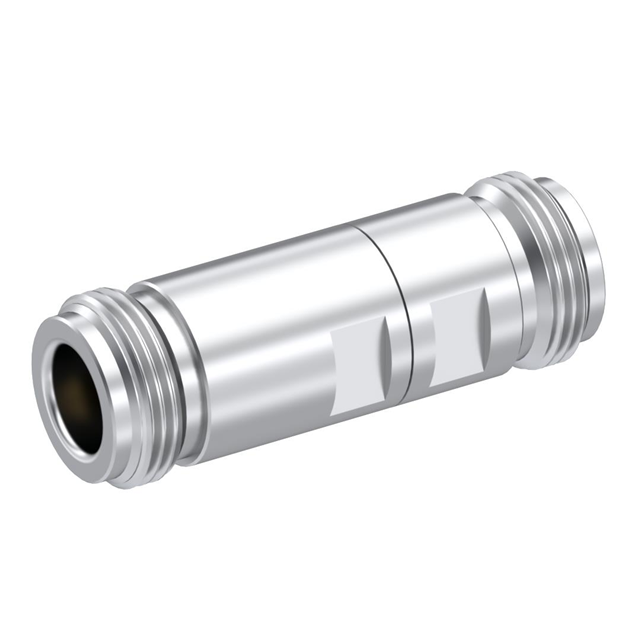

R163705001

Active

Radiall USA, Inc.

COAX ADAPT N TO N

Search across all available documentation for this part.

Active

Radiall USA, Inc.

COAX ADAPT N TO N

Technical Specifications

Parameters and characteristics for this part

Specification	R163705001

Adapter Series	N to N
Adapter Type	Jack to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	N Jack, Female Socket
Convert To (Adapter End)	Female Socket, N Jack
Dielectric Material	Polyetherimide (PEI), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Convert To (Adapter End)	Center Contact Material	Adapter Type	Center Gender	Impedance	Dielectric Material	Style	Conversion Type	Operating Temperature [Min]	Operating Temperature [Max]	Adapter Series	Body Material	Convert From (Adapter End)	Mounting Type	Frequency - Max [Max]	Center Contact Plating
Radiall USA, Inc. R163705001	Female Socket N Jack	Beryllium Copper	Jack to Jack	Female to Female	50 Ohms	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	Straight	Same Series	-65 ░C	165 °C	N to N	Stainless Steel	Female Socket N Jack	Free Hanging (In-Line)	18 GHz	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 251.76

General part information

Adapter Coaxial Connector N Jack, Female Socket To N Jack, Female Socket 50 Ohms
