H3BWH-6418G

Active

Assmann WSW Components

IDC CBL - HHSR64H/AE64G/HHPL64H

Search across all available documentation for this part.

Active

Assmann WSW Components

IDC CBL - HHSR64H/AE64G/HHPL64H

Technical Specifications

Parameters and characteristics for this part

Specification	H3BWH-6418G

Cable Termination	IDC
Connector Type	Socket to Plug
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Features	Strain Relief (Socket), Polarizing Key (Plug), Flange
Length [x]	457.2 mm
Length [x]	1.5 ft
Number of Positions	64
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

Part	Number of Positions	Contact Finish	Connector Type	Length [x]	Length [x]	Cable Termination	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Features	Shielding	Pitch - Cable	Pitch - Cable	Pitch - Connector	Pitch - Connector	Length	Length	Length
Assmann WSW Components H3BWH-6436G	64	Gold	Socket to Plug	3 ft	914.4 mm	IDC	2	15 µin	0.38 µm	Flange Polarizing Key (Plug) Strain Relief (Socket)	Unshielded	0.05 "	1.27 mm	0.1 in	2.54 mm
Assmann WSW Components H3BWH-6418G	64	Gold	Socket to Plug	1.5 ft	457.2 mm	IDC	2	15 µin	0.38 µm	Flange Polarizing Key (Plug) Strain Relief (Socket)	Unshielded	0.05 "	1.27 mm	0.1 in	2.54 mm
Assmann WSW Components H3BWH-6406G	64	Gold	Socket to Plug			IDC	2	15 µin	0.38 µm	Flange Polarizing Key (Plug) Strain Relief (Socket)	Unshielded	0.05 "	1.27 mm	0.1 in	2.54 mm	152.4 mm	6 "	0.5 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

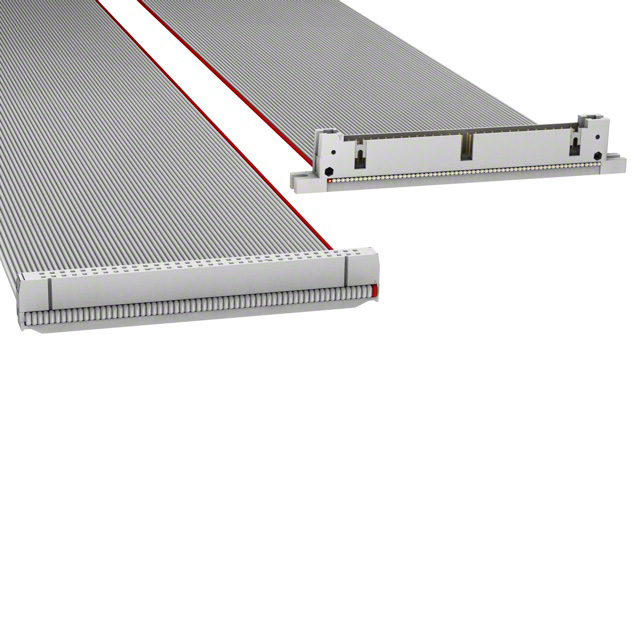

64 Position Cable Assembly Rectangular Socket to Plug 1.50' (457.20mm)
