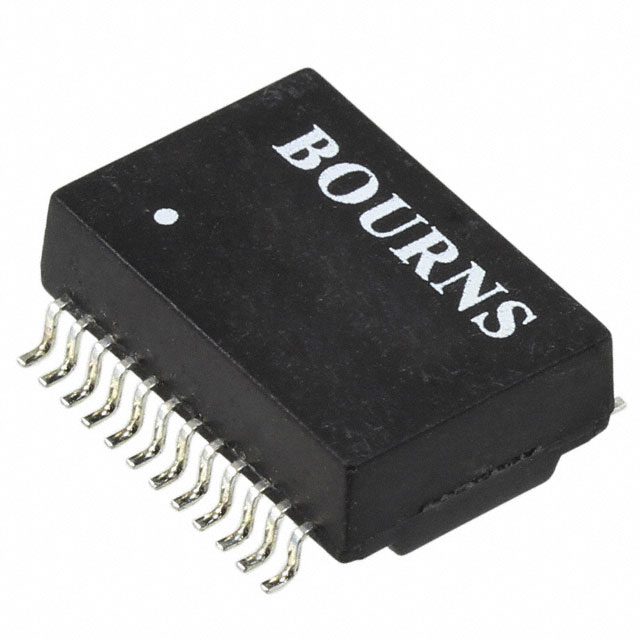

SM51589EL

Obsolete

Bourns Inc.

PULSE XFMR 1CT:1CT 350UH

Search across all available documentation for this part.

Obsolete

Bourns Inc.

PULSE XFMR 1CT:1CT 350UH

Technical Specifications

Parameters and characteristics for this part

Specification	SM51589EL

Height - Seated (Max) [Max]	0.236 in
Height - Seated (Max) [Max]	6 mm
Inductance	350 µH
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Size / Dimension [x]	0.694 in
Size / Dimension [x]	17.62 mm
Size / Dimension [y]	12.2 mm
Size / Dimension [y]	0.48 in
Transformer Type	LAN 10/100 Base-T
Turns Ratio - Primary:Secondary [custom]	1CT
Turns Ratio - Primary:Secondary [custom]	1CT

Part	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Turns Ratio - Primary:Secondary [custom]	Turns Ratio - Primary:Secondary [custom]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Transformer Type	Inductance
Bourns Inc. SM51589EL	85 °C	-40 °C	0.236 in	6 mm	1CT	1CT	0.694 in	12.2 mm	17.62 mm	0.48 in	Surface Mount	LAN 10/100 Base-T	350 µH

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

350µH LAN 10/100 Base-T Pulse Transformer 1CT:1CT Surface Mount
