General part information

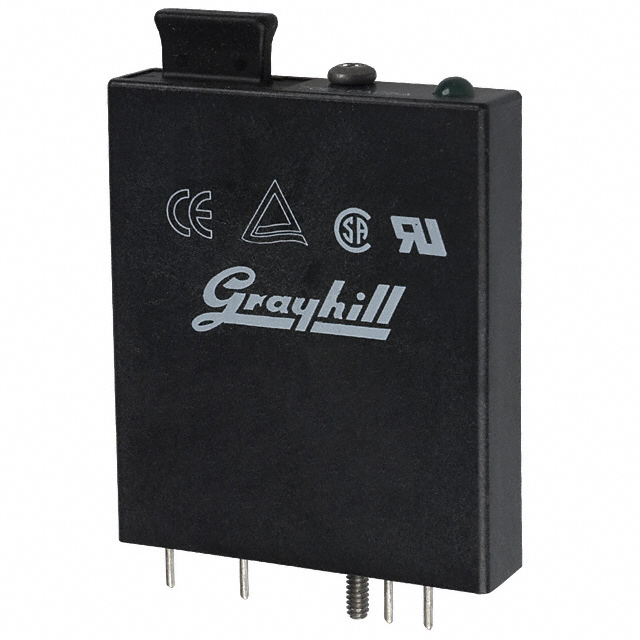

I/O Modules I/O Module G5 digital output
Technical documentation and resources
Parameters and characteristics for this part
| Specification | 70G-OAC5A |
|---|---|
| Color | Black |
| Current - Input | 20 mA |
| Current - Output | 3.5 A |
| Features | Status LED(s), Fused, Hold Down Screw |
| Style | G5 |
| Turn Off Time | 8.33 ms |
| Turn On Time | 8.33 ms |
| Type | AC Output Module |
| Voltage - Input | 5 VDC |
| Voltage - Output [Max] | 280 VAC |
| Voltage - Output [Min] | 24 VAC |
I/O Modules I/O Module G5 digital output
| Part | Turn On Time | Turn Off Time | Current - Output | Features | Type | Voltage - Output [Min] | Voltage - Output [Max] | Color | Style | Voltage - Input | Current - Input |
|---|---|---|---|---|---|---|---|---|---|---|---|
Grayhill Inc. 70G-OAC5A | 8.33 ms | 8.33 ms | 3.5 A | Fused, Hold Down Screw, Status LED(s) | AC Output Module | 24 VAC | 280 VAC | Black | G5 | 5 VDC | 20 mA |
