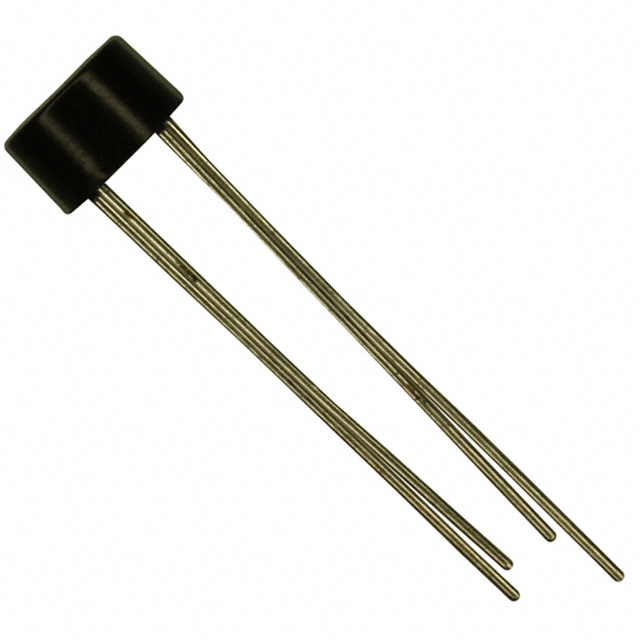

W01M-BP
ActiveMicro Commercial Co
BRIDGE RECT 1PHASE 100V 1.5A WOM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
W01M-BP
ActiveMicro Commercial Co
BRIDGE RECT 1PHASE 100V 1.5A WOM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | W01M-BP |
|---|---|
| Current - Average Rectified (Io) | 1.5 A |
| Current - Reverse Leakage @ Vr | 10 µA |
| Diode Type | Single Phase |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 4-Circular, WOM |
| Supplier Device Package | WOM |
| Technology | Standard |
| Voltage - Forward (Vf) (Max) @ If | 1 V |
| Voltage - Peak Reverse (Max) [Max] | 100 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
W01 Series
BRIDGE RECT 1PHASE 100V 1.5A WOM
| Part | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Mounting Type | Technology | Package / Case | Supplier Device Package | Diode Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Peak Reverse (Max) [Max] | Current - Reverse Leakage @ Vr |
|---|---|---|---|---|---|---|---|---|---|---|---|
Micro Commercial Co W01M-BP | 1.5 A | 1 V | Through Hole | Standard | 4-Circular, WOM | WOM | Single Phase | 125 ¯C | -55 °C | 100 V | 10 µA |
Description
General part information
W01 Series
Bridge Rectifier Single Phase Standard 100 V Through Hole WOM
