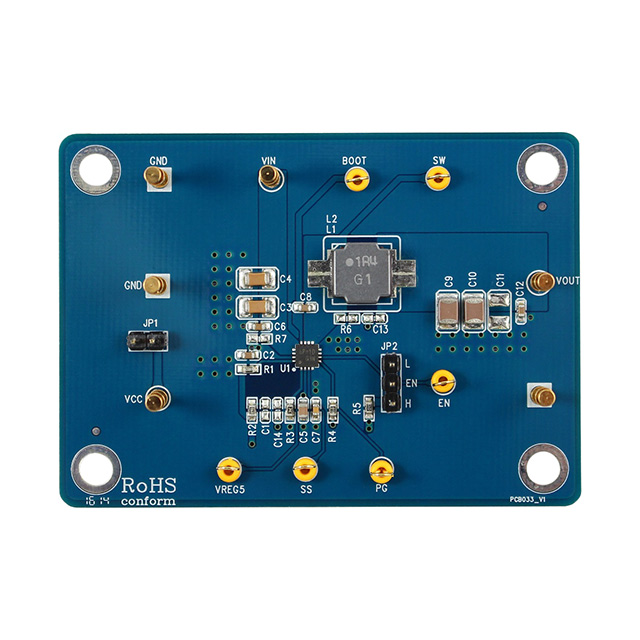

EVB_RT6259BHGQW

Active

Richtek USA Inc.

EVAL MODULE FOR RT6259BHGQW

Search across all available documentation for this part.

Active

Richtek USA Inc.

EVAL MODULE FOR RT6259BHGQW

Technical Specifications

Parameters and characteristics for this part

Part	Current - Output	Output Type	Supplier Device Package	Package / Case	Number of Outputs	Synchronous Rectifier	Mounting Type	Function	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Switching	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Voltage - Output (Max) [Max]	Output Configuration	Topology	Voltage - Input [Max]	Voltage - Input [Min]	Outputs and Type	Outputs and Type	Utilized IC / Part	Board Type	Supplied Contents	Regulator Topology	Voltage - Output	Main Purpose
Richtek USA Inc. RT6259BHGQW	3 A	Adjustable	16-WQFN (3x3)	16-WFQFN Exposed Pad	1		Surface Mount	Step-Down	85 °C	-40 °C	650 kHz	18 V	4.5 V	7 V	Positive	Buck
Richtek USA Inc. EVB_RT6259BHGQW	3 A										650 kHz						18 V	4.5 V	Non-Isolated	1	RT6259B	Fully Populated	Board(s)	Buck	1.05 V	DC/DC Step Down

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 44.90

General part information

RT6259B ACOT® DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board

Technical documentation and resources
