WM094R,BK

Active

Serpac

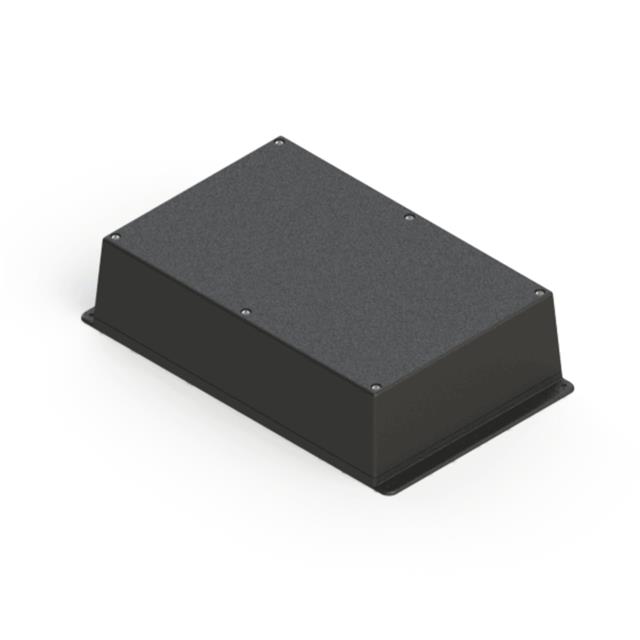

BOX ABS BLACK 9.5"L X 6.34"W

Deep-Dive with AI

Search across all available documentation for this part.

WM094R,BK

Active

Serpac

BOX ABS BLACK 9.5"L X 6.34"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 22.48
		5	$ 18.07
		10	$ 17.31
		25	$ 16.75
		50	$ 16.53
		100	$ 16.39
		250	$ 16.30
		500	$ 16.26

Description

General part information

WM094 Series

Box Plastic, ABS Black Cover Included 9.500" L x 6.340" W (241.30mm x 161.04mm) X 2.600" (66.04mm)

Documents

Technical documentation and resources

No documents available

Specification	WM094R,BK	WM094 Series

Area (L x W)	60.2 in²	60.2 in²
Area (L x W)	388 cm²	388 cm²
Color	Black	Almond, Black, Gray
Container Type	Box	Box
Design	Cover Included	Cover Included
Features	Mounting Flange, Wall Mount, PCB Supports, Front Access	Mounting Flange, Wall Mount, PCB Supports, Front Access
Height [z]	66.04 mm	66.04 mm
Height [z]	66.04 mm	66.04 mm
Material	Plastic, ABS	Plastic, ABS
Material Flammability Rating	UL94 HB	UL94 HB
Ratings	IP40, NEMA 1	IP40, NEMA 1
Size / Dimension	161.04 mm, 241.3 mm	161.04 - 241.3 mm
Size / Dimension [x]	9.5 "	9.5 "
Size / Dimension [y]	6.34 "	6.34 "
Thickness	2.54 mm	2.54 mm
Thickness	0.1 in	0.1 in

Part	Material	Container Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension	Design	Ratings	Features	Height [z]	Height [z]	Color	Area (L x W)	Area (L x W)	Material Flammability Rating	Thickness	Thickness
Serpac WM094RI,AL	Plastic, ABS	Box	9.5 "	6.34 "	161.04 mm, 241.3 mm	Cover Included	IP40, NEMA 1	Front Access, Mounting Flange, PCB Supports, Wall Mount	66.04 mm	66.04 mm	Almond	60.2 in²	388 cm²	UL94 HB	2.54 mm	0.1 in
Serpac WM094,BK	Plastic, ABS	Box	9.5 "	6.34 "	161.04 mm, 241.3 mm	Cover Included	IP40, NEMA 1	Mounting Flange, PCB Supports, Wall Mount	66.04 mm	66.04 mm	Black	60.2 in²	388 cm²	UL94 HB	2.54 mm	0.1 in
Serpac WM094RI,BK	Plastic, ABS	Box	9.5 "	6.34 "	161.04 mm, 241.3 mm	Cover Included	IP40, NEMA 1	Front Access, Mounting Flange, PCB Supports, Wall Mount	66.04 mm	66.04 mm	Black	60.2 in²	388 cm²	UL94 HB	2.54 mm	0.1 in
Serpac WM094RI,GY	Plastic, ABS	Box	9.5 "	6.34 "	161.04 mm, 241.3 mm	Cover Included	IP40, NEMA 1	Front Access, Mounting Flange, PCB Supports, Wall Mount	66.04 mm	66.04 mm	Gray	60.2 in²	388 cm²	UL94 HB	2.54 mm	0.1 in
Serpac WM094I,AL	Plastic, ABS	Box	9.5 "	6.34 "	161.04 mm, 241.3 mm	Cover Included	IP40, NEMA 1	Mounting Flange, PCB Supports, Wall Mount	66.04 mm	66.04 mm	Almond	60.2 in²	388 cm²	UL94 HB	2.54 mm	0.1 in
Serpac WM094R,BK	Plastic, ABS	Box	9.5 "	6.34 "	161.04 mm, 241.3 mm	Cover Included	IP40, NEMA 1	Front Access, Mounting Flange, PCB Supports, Wall Mount	66.04 mm	66.04 mm	Black	60.2 in²	388 cm²	UL94 HB	2.54 mm	0.1 in
Serpac WM094I,BK	Plastic, ABS	Box	9.5 "	6.34 "	161.04 mm, 241.3 mm	Cover Included	IP40, NEMA 1	Mounting Flange, PCB Supports, Wall Mount	66.04 mm	66.04 mm	Black	60.2 in²	388 cm²	UL94 HB	2.54 mm	0.1 in
Serpac WM094R,AL	Plastic, ABS	Box	9.5 "	6.34 "	161.04 mm, 241.3 mm	Cover Included	IP40, NEMA 1	Front Access, Mounting Flange, PCB Supports, Wall Mount	66.04 mm	66.04 mm	Almond	60.2 in²	388 cm²	UL94 HB	2.54 mm	0.1 in
Serpac WM094I,GY	Plastic, ABS	Box	9.5 "	6.34 "	161.04 mm, 241.3 mm	Cover Included	IP40, NEMA 1	Mounting Flange, PCB Supports, Wall Mount	66.04 mm	66.04 mm	Gray	60.2 in²	388 cm²	UL94 HB	2.54 mm	0.1 in
Serpac WM094R,GY	Plastic, ABS	Box	9.5 "	6.34 "	161.04 mm, 241.3 mm	Cover Included	IP40, NEMA 1	Front Access, Mounting Flange, PCB Supports, Wall Mount	66.04 mm	66.04 mm	Gray	60.2 in²	388 cm²	UL94 HB	2.54 mm	0.1 in
