336312-12-0100

Amphenol RF

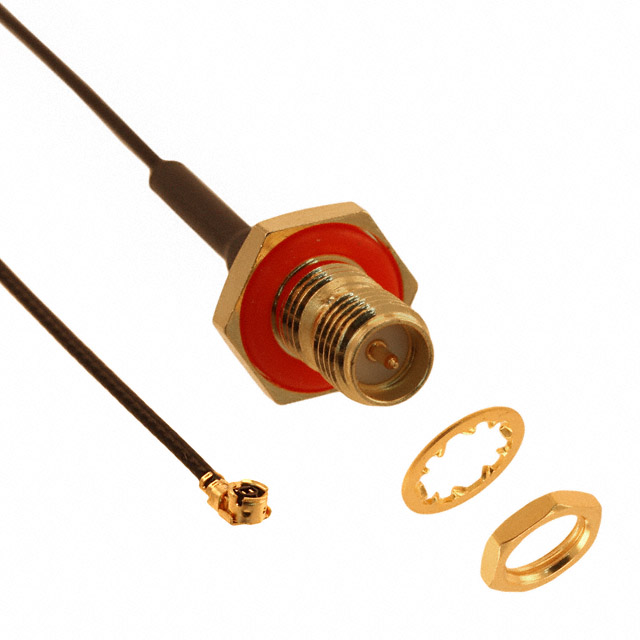

CABLE ASSEMBLY 1.13MM CABLE 0.1M SMA TO AMC F-M BAG

Search across all available documentation for this part.

Amphenol RF

CABLE ASSEMBLY 1.13MM CABLE 0.1M SMA TO AMC F-M BAG

Technical Specifications

Parameters and characteristics for this part

Specification	336312-12-0100

1st Connector	RP-SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Male
2nd Connector	AMC Plug, U.FL (UMCC), Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	1.13mm OD Coaxial Cable
Color	Black
Frequency - Max [Max]	6000 MHz
Ingress Protection	IP67 - Dust Tight, Waterproof
Length [x]	0.1 m
Length [x]	3.937 in
Overall Impedance	50 Ohms
Style	U.FL (UMCC)
Style	AMC to RP-SMA

Part	1st Connector Mounting Feature	Style	Style	1st Contact Gender	Color	Cable Type	1st Connector Mounting Type	2nd Connector Mounting Type	Frequency - Max [Max]	Ingress Protection	2nd Contact Gender	Overall Impedance	1st Connector	Length [x]	Length [x]	2nd Connector	Length	Length
Amphenol RF 336312-12-0100	Bulkhead - Front Side Nut	U.FL (UMCC)	AMC to RP-SMA	Male	Black	1.13mm OD Coaxial Cable	Panel Mount	Free Hanging (In-Line)	6000 MHz	IP67 - Dust Tight Waterproof	Female	50 Ohms	RP-SMA Jack	0.1 m	3.937 in	AMC Plug Right Angle U.FL (UMCC)
Amphenol RF 336312-12-0200	Bulkhead - Front Side Nut	U.FL (UMCC)	AMC to RP-SMA	Male	Black	1.13mm OD Coaxial Cable	Panel Mount	Free Hanging (In-Line)	6000 MHz	IP67 - Dust Tight Waterproof	Female	50 Ohms	RP-SMA Jack			AMC Plug Right Angle U.FL (UMCC)	7.874 in	200 mm
Amphenol RF 336312-12-0050	Bulkhead - Front Side Nut	U.FL (UMCC)	AMC to RP-SMA	Male	Black	1.13mm OD Coaxial Cable	Panel Mount	Free Hanging (In-Line)	6000 MHz	IP67 - Dust Tight Waterproof	Female	50 Ohms	RP-SMA Jack	50 mm	1.969 in	AMC Plug Right Angle U.FL (UMCC)
Amphenol RF 336312-12-0300	Bulkhead - Front Side Nut	U.FL (UMCC)	AMC to RP-SMA	Male	Black	1.13mm OD Coaxial Cable	Panel Mount	Free Hanging (In-Line)	6000 MHz	IP67 - Dust Tight Waterproof	Female	50 Ohms	RP-SMA Jack	300 mm	11.811 in	AMC Plug Right Angle U.FL (UMCC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 27.00

General part information

Cable Assembly Coaxial U.FL (UMCC), AMC to RP-SMA 1.13mm OD Coaxial Cable 3.937" (100.00mm)
