346-068-559-212
ActiveEDAC Inc.

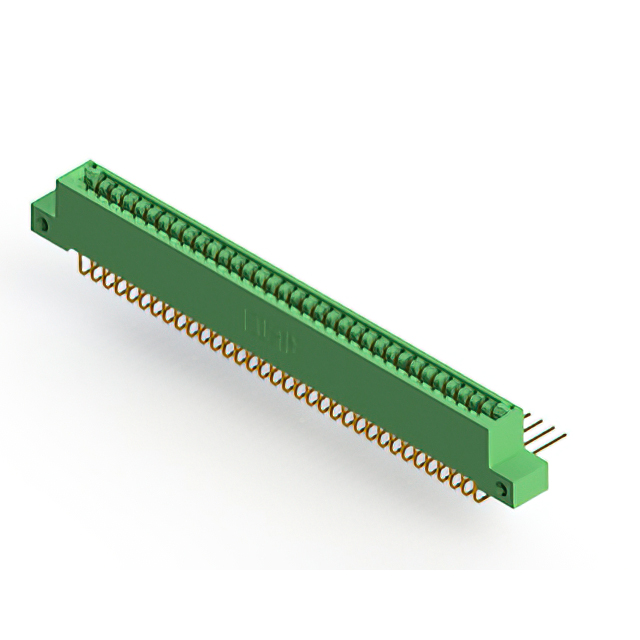

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 68 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE
Deep-Dive with AI
Search across all available documentation for this part.
346-068-559-212
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 68 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 346-068-559-212 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Unthreaded, Flush Mount, Side Opening |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 68 |
| Number of Positions/Bay/Row [custom] | 34 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Wire Wrap, Solder |
| Termination Rows | 2 |
346-068 Series
...
| Part | Termination | Number of Rows | Flange Feature | Contact Type | Card Type | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Contact Finish | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Color | Number of Positions/Bay/Row [custom] | Gender | Operating Temperature [Min] | Operating Temperature [Max] | Read Out | Termination Rows | Pitch [x] | Pitch [x] | Number of Positions | Material - Insulation | Mounting Type | Flange Feature [diameter] | Flange Feature [diameter] | Features | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Solder | 2 | M3 Threaded Insert Top Mount Opening | Cantilever | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 34 | Female | -40 °C | 105 ░C | Dual | 2 | 0.125 in | 3.18 mm | 68 | Polyester Thermoplastic | Through Hole | |||||
EDAC Inc. | Solder | 2 | Top Mount Opening Unthreaded | Cantilever | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 34 | Female | -40 °C | 105 ░C | Dual | 2 | 0.125 in | 3.18 mm | 68 | Polyester Thermoplastic | Board Edge Straddle Mount | 0.156 in | 3.96 mm | Card Extender | ||
EDAC Inc. | Wire Wrap | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 34 | Female | -40 °C | 105 ░C | Dual | 2 | 0.125 in | 3.18 mm | 68 | Polyester Thermoplastic | Through Hole | |||||
EDAC Inc. | Solder Eyelet(s) | 2 | Side Mount Opening Unthreaded | Cantilever | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 34 | Female | -40 °C | 105 ░C | Dual | 2 | 0.125 in | 3.18 mm | 68 | Polyester Thermoplastic | Board Edge Straddle Mount | Card Extender | 3.25 mm | 0.128 in | ||
EDAC Inc. | Wire Wrap | 2 | Floating Bobbin Top Mount Opening | Cantilever | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 34 | Female | -40 °C | 105 ░C | Dual | 2 | 0.125 in | 3.18 mm | 68 | Polyester Thermoplastic | Through Hole | 0.116 in | 2.95 mm | |||
EDAC Inc. | Solder | 2 | Flush Mount M3 Threaded Insert Top Opening | Cantilever | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 34 | Female | -40 °C | 105 ░C | Dual | 2 | 0.125 in | 3.18 mm | 68 | Polyester Thermoplastic | Board Edge Straddle Mount | Card Extender | ||||
EDAC Inc. | Solder | 2 | 4-40 Threaded Insert Top Mount Opening | Cantilever | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 34 | Female | -40 °C | 105 ░C | Dual | 2 | 0.125 in | 3.18 mm | 68 | Polyester Thermoplastic | Board Edge Straddle Mount | Card Extender | ||||
EDAC Inc. | Solder Wire Wrap | 2 | Flush Mount Side Opening Unthreaded | Cantilever | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 34 | Female | -40 °C | 105 ░C | Dual | 2 | 0.125 in | 3.18 mm | 68 | Polyester Thermoplastic | Through Hole Right Angle | 0.128 " | 3.25 mm | |||
EDAC Inc. | Solder Wire Wrap | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 34 | Female | -40 °C | 105 ░C | Dual | 2 | 0.125 in | 3.18 mm | 68 | Polyester Thermoplastic | Through Hole Right Angle | |||||
EDAC Inc. | Wire Wrap | 2 | Floating Bobbin Flush Mount | Cantilever | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 34 | Female | -40 °C | 105 ░C | Dual | 2 | 0.125 in | 3.18 mm | 68 | Polyester Thermoplastic | Through Hole | 0.116 in | 2.95 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
346-068 Series
68 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Green
