TL30BGRXXXAXQD
ActiveBANNER ENGINEERING
COMPLETE UNIT GR/R STEADY 2STACK
TL30BGRXXXAXQD
ActiveBANNER ENGINEERING
COMPLETE UNIT GR/R STEADY 2STACK
Description
General part information
TL30BG Series

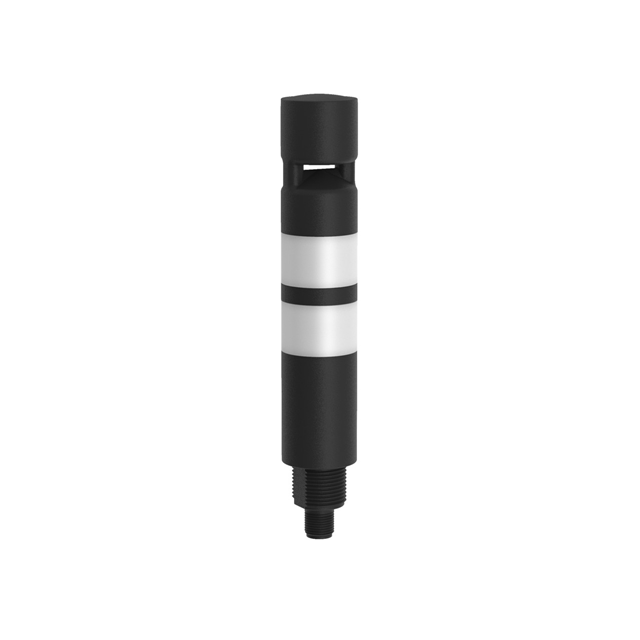

Stack Light Complete Unit Green, Red LED Alarm Connector
Technical Specifications
Parameters and characteristics for this part
| Specification | TL30BGRXXXAXQD |
|---|---|
| Features | Alarm |
| Function - Audible | Continuous |
| Function - Lighting | Steady |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP65 |
| Lamp Type | LED |
| Light Color | Green, Red |
| Number of Stacks | 2 |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -40 °C |
| Termination Style | Connector |
| Type | Complete Unit |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 12 VDC |
