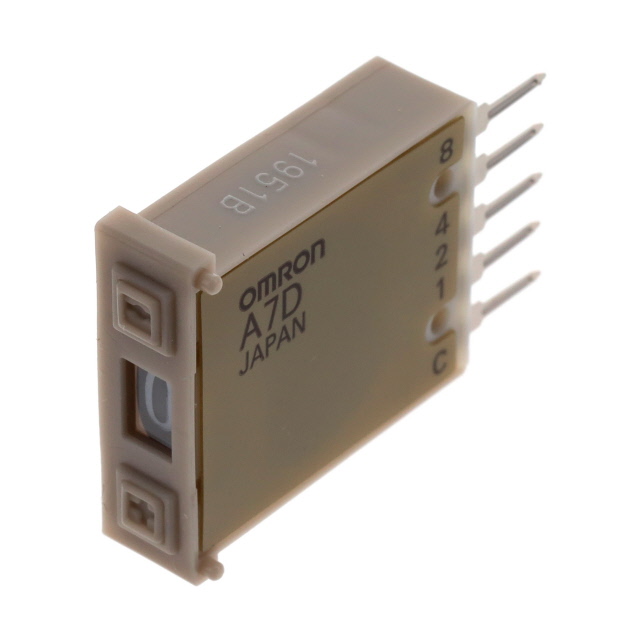

A7DP-206

Active

Omron Electronics Inc-EMC Div

SWITCH THUMB BCD 0.1A 30V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH THUMB BCD 0.1A 30V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A7DP-206	A7DP Series

Actuator Type	Pushwheel	Pushwheel
Color	Light Gray	Light Gray, Black
Contact Rating @ Voltage	30 VDC, 0.1 A	0.1 - 30 VDC
Depth Behind Flange [z]	17.5 mm	17.5 mm
Electrical Life	20000 Steps	20000 Steps
End Caps	Sold Separately	Sold Separately
Features	Pen-Push Actuator	Pen-Push Actuator, Internal Stoppers
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Number of Sections	1	1
Operating Temperature [Max] [custom]	158 °F	158 °F
Operating Temperature [Min] [custom]	-10 °C	-10 °C
Output Code	BCD	BCD, SPDT
Read Out	-	+/-
Read Out [Max]	9	6 - 9
Read Out [Min]	0	0
Termination Style	PC Pin	PC Pin

SWITCH THUMB BCD 0.1A 30V

Part	Color	Mounting Type	Depth Behind Flange [z]	Electrical Life	Output Code	Termination Style	Actuator Type	End Caps	Contact Rating @ Voltage	Features	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Number of Sections	Read Out [Min]	Read Out [Max]	Read Out
Omron Electronics Inc-EMC Div A7DP-206	Light Gray	Panel Mount, Snap-In	17.5 mm	20000 Steps	BCD	PC Pin	Pushwheel	Sold Separately	0.1 A, 30 VDC	Pen-Push Actuator	-10 °C	158 °F	1	0	9
Omron Electronics Inc-EMC Div A7DP-206-S06-1	Black	Panel Mount, Snap-In	17.5 mm	20000 Steps	BCD	PC Pin	Pushwheel	Sold Separately	0.1 A, 30 VDC	Internal Stoppers, Pen-Push Actuator	-10 °C	158 °F	1	0	6
Omron Electronics Inc-EMC Div A7DP-206-1	Black	Panel Mount, Snap-In	17.5 mm	20000 Steps	BCD	PC Pin	Pushwheel	Sold Separately	0.1 A, 30 VDC	Pen-Push Actuator	-10 °C	158 °F	1	0	9
Omron Electronics Inc-EMC Div A7DP-206-PM-1	Black	Panel Mount, Snap-In	17.5 mm	20000 Steps	SPDT	PC Pin	Pushwheel	Sold Separately	0.1 A, 30 VDC	Pen-Push Actuator	-10 °C	158 °F	1			+/-
