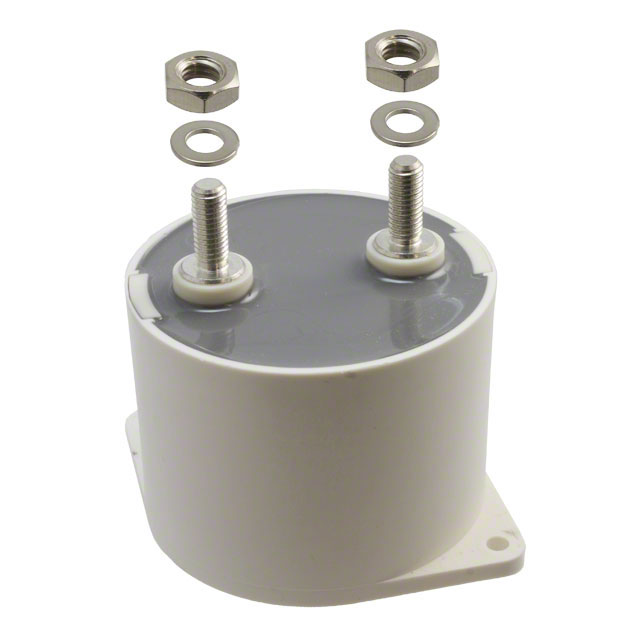

C4DEFPQ6380A8TK

Active

KEMET

CAP FILM 380UF 10% 400VDC RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP FILM 380UF 10% 400VDC RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	C4DEFPQ6380A8TK

Applications	DC Link, DC Filtering
Capacitance	380 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	0.81 mOhms
Features	Low ESL
Height - Seated (Max) [Max]	66 mm
Height - Seated (Max) [Max]	2.598 "
Mounting Type	Chassis Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Size / Dimension [diameter]	84 mm
Size / Dimension [diameter]	3.307 in
Termination	Threaded, Male
Tolerance	10 %
Voltage Rating - DC	400 V

Part	Features	Termination	Voltage Rating - DC	Dielectric Material	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Applications	Tolerance	Mounting Type	Capacitance	ESR (Equivalent Series Resistance)	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET C4DEFPQ6380A8TK	Low ESL	Threaded Male	400 V	Metallized Polypropylene (PP)	Radial Can	84 mm	3.307 in	DC Filtering DC Link	10 %	Chassis Mount	380 µF	0.81 mOhms	85 °C	-40 °C	66 mm	2.598 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

380 µF Film Capacitor 400V Polypropylene (PP), Metallized Radial, Can
