TSPB5H150S S1G

Active

Taiwan Semiconductor Corporation

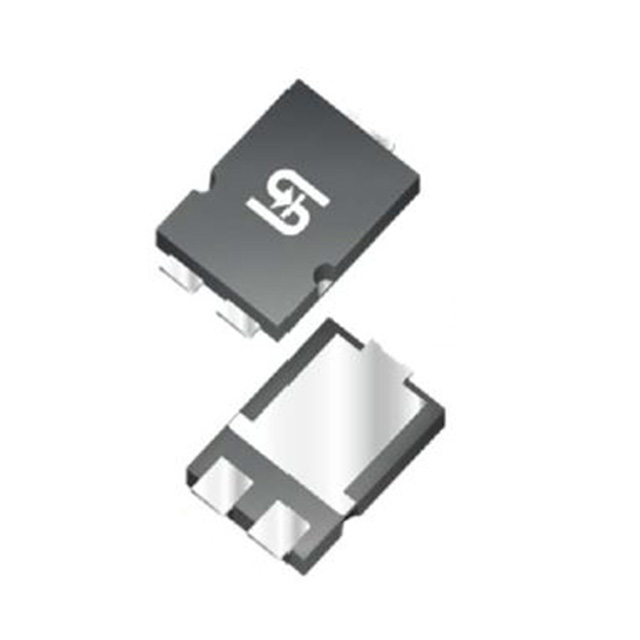

DIODE SCHOTTKY 150V 5A 3-PIN(2+TAB) SMPC-4.0 T/R

Search across all available documentation for this part.

Active

Taiwan Semiconductor Corporation

DIODE SCHOTTKY 150V 5A 3-PIN(2+TAB) SMPC-4.0 T/R

Technical Specifications

Parameters and characteristics for this part

Specification	TSPB5H150S S1G

Current - Average Rectified (Io)	5 A
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	3-PowerDFN, TO-277
Speed	200 mA, 500 ns
Supplier Device Package	SMPC4.0
Technology	Schottky
Voltage - Forward (Vf) (Max) @ If	840 mV

Part	Voltage - Forward (Vf) (Max) @ If	Package / Case	Mounting Type	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Reverse Leakage @ Vr	Technology	Current - Average Rectified (Io)	Supplier Device Package	Speed	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If [Max]
Taiwan Semiconductor Corporation TSPB5H120S	740 mV	3-PowerDFN TO-277	Surface Mount	150 °C	-55 °C	150 µA	Schottky	5 A	SMPC4.0	200 mA 500 ns	120 V
Taiwan Semiconductor Corporation TSPB5H100S		3-PowerDFN TO-277	Surface Mount	150 °C	-55 °C	150 µA	Schottky	5 A	SMPC4.0	200 mA 500 ns	100 V	660 mV
Taiwan Semiconductor Corporation TSPB5H150S S1G	840 mV	3-PowerDFN TO-277	Surface Mount	150 °C	-55 °C		Schottky	5 A	SMPC4.0	200 mA 500 ns
Taiwan Semiconductor Corporation TSPB5H120S S1G	740 mV	3-PowerDFN TO-277	Surface Mount	150 °C	-55 °C	150 µA	Schottky	5 A	SMPC4.0	200 mA 500 ns	120 V
Taiwan Semiconductor Corporation TSPB5H150S	840 mV	3-PowerDFN TO-277	Surface Mount	150 °C	-55 °C		Schottky	5 A	SMPC4.0	200 mA 500 ns

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 150 V 5A Surface Mount SMPC4.0
