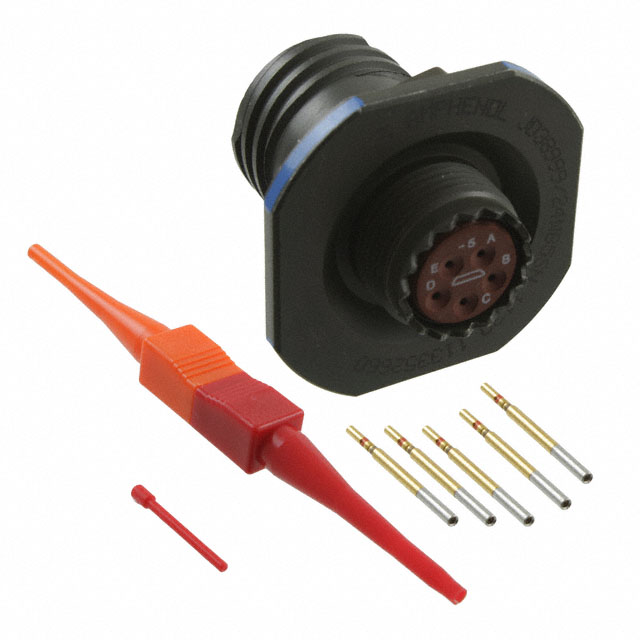

D38999/24WB5SN

Active

Amphenol Aerospace Operations

CONN RCPT FMALE 5POS GOLD CRIMP

Search across all available documentation for this part.

Active

Amphenol Aerospace Operations

CONN RCPT FMALE 5POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/24WB5SN

Applications	Aviation, Aerospace, Marine, Military
Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Thermoplastic
Mounting Feature	Bulkhead - Front Side Nut
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum
Shell Size - Insert	11-5
Shell Size, MIL	B
Shielding	Shielded
Termination	Crimp

Part	Ingress Protection	Grade	Mounting Feature	Shielding	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Orientation	Contact Finish - Mating	Primary Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Material	Qualification	Termination	Shell Size, MIL	Shell Finish	Color	Connector Type	Contact Material	Applications	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Shell Size - Insert
Amphenol Aerospace Operations D38999/24WB35JN	Environment Resistant	Military	Bulkhead - Front Side Nut	Shielded	11	35	N	Gold	Metal	2.54 çm	100 çin	Aluminum	MIL-DTL-38999 Series III	Crimp	B	Olive Drab Cadmium	Olive Drab	Receptacle Female Sockets	Copper Alloy	Aerospace Aviation Military	13	-65 ░C	347 °F
Amphenol Aerospace Operations D38999/24WB5SN	Environment Resistant	Military	Bulkhead - Front Side Nut	Shielded			N	Gold	Metal	1.27 µm	50 µin	Aluminum	MIL-DTL-38999 Series III	Crimp	B	Olive Drab Cadmium	Olive Drab	Receptacle Female Sockets	Copper Alloy	Aerospace Aviation Marine Military		-65 ░C	347 °F	Thermoplastic	11-5

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Receptacle, Female Sockets Crimp
