1SNL312530R0000

Active

TE Connectivity ENTRELEC

DBL125-3

Search across all available documentation for this part.

Active

TE Connectivity ENTRELEC

DBL125-3

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

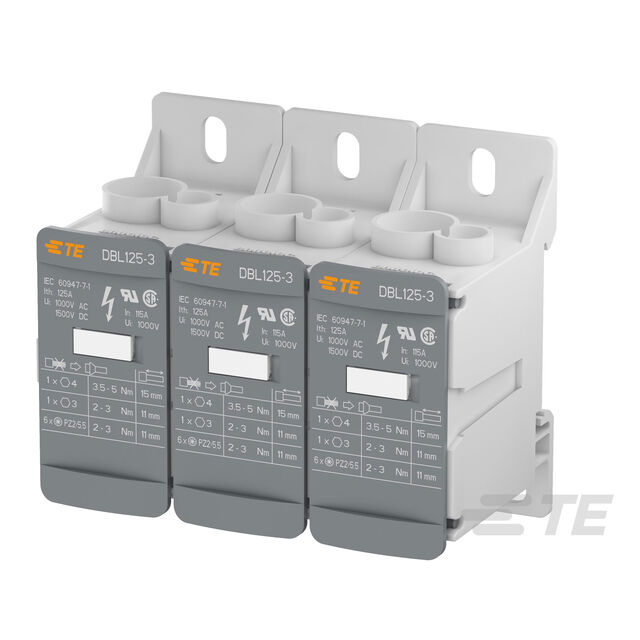

3 Pole Power Distribution Block 115 A 1000 V

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	1SNL312530R0000	1SNL Series

Current Rating (Amps)	115 A	80 - 510 A
Line Side Connection Type	Screw Connection	Screw Connection
Line Side Connections Per Pole	3	1 - 3
Line Side Wire/Stud Size	-	2 - 250 MCM
Line Side Wire/Stud Size	-	250 kcmil
Line Side Wire/Stud Size	-	6 AWG
Line Side Wire/Stud Size	-	14 AWG
Load Side Connection Type	Screw Connection	Screw Connection
Load Side Connections Per Pole	8	4 - 14
Load Side Wire/Stud Size	-	2 - 250 kcmil
Load Side Wire/Stud Size	-	14 AWG
Load Side Wire/Stud Size	-	6 AWG
Number of Poles	3	1 - 3
Type	Power Distribution Block	Power Distribution Block
Voltage - Rated	1000 V	1000 V

DBL500-22

Part	Load Side Connection Type	Load Side Wire/Stud Size	Line Side Wire/Stud Size	Line Side Wire/Stud Size	Line Side Connection Type	Line Side Connections Per Pole	Load Side Connections Per Pole	Current Rating (Amps)	Voltage - Rated	Number of Poles	Type	Line Side Wire/Stud Size [Min]	Line Side Wire/Stud Size [Max]	Load Side Wire/Stud Size [Max]	Load Side Wire/Stud Size [Min]
TE Connectivity ENTRELEC 1SNL850001R0000	Screw Connection	250 kcmil	250 MCM	250 kcmil	Screw Connection	1	4	510 A	1000 V	1	Power Distribution Block
TE Connectivity ENTRELEC 1SNL325060R0000	Screw Connection				Screw Connection	1	7	250 A	1000 V	1	Power Distribution Block	6 AWG	14 AWG	14 AWG	6 AWG
TE Connectivity ENTRELEC 1SNL312510R0000	Screw Connection				Screw Connection	1	7	115 A	1000 V	1	Power Distribution Block
TE Connectivity ENTRELEC 1SNL312530R0000	Screw Connection				Screw Connection	3	8	115 A	1000 V	3	Power Distribution Block
TE Connectivity ENTRELEC 1SNL325010R0000	Screw Connection				Screw Connection	1	11	225 A	1000 V	1	Power Distribution Block
TE Connectivity ENTRELEC 1SNL317510R0000	Screw Connection	2 aught AWG	2 aught AWG		Screw Connection	1	12	175 A	1000 V	1	Power Distribution Block
TE Connectivity ENTRELEC 1SNL308010R0000	Screw Connection				Screw Connection	1	6	80 A	1000 V	1	Power Distribution Block
TE Connectivity ENTRELEC 1SNL340011R0000	Screw Connection	250 kcmil	250 MCM	250 kcmil	Screw Connection	1	14	400 A	1000 V	1	Power Distribution Block
TE Connectivity ENTRELEC 1SNL317531R0000	Screw Connection	2 aught AWG	2 aught AWG		Screw Connection	3	8	175 A	1000 V	3	Power Distribution Block
