ERA.2E.310.CLL

Active

LEMO

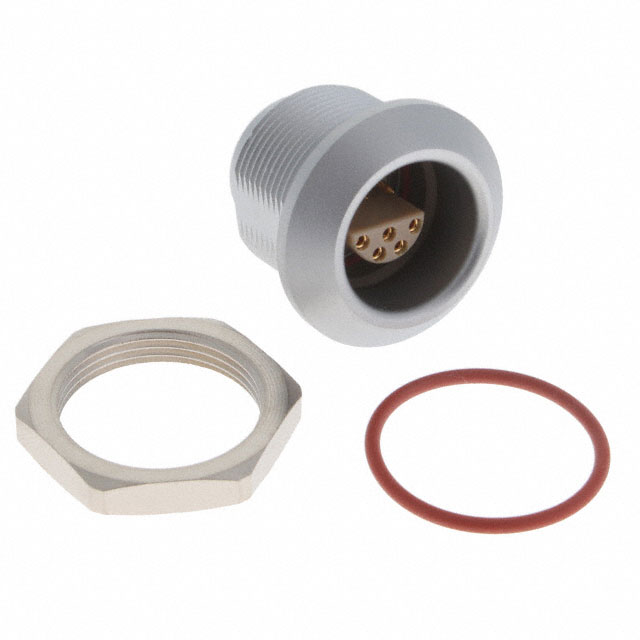

CONN CIRC RCPT 10P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ERA.2E.310.CLL

Active

LEMO

CONN CIRC RCPT 10P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 72.20
		10	$ 66.25
		25	$ 63.71
		50	$ 61.58
		100	$ 58.18

Description

General part information

ERA.2E Series

10 Position Circular Connector Receptacle, Female Sockets and Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ERA.2E.310.CLL	ERA.2E Series

Body Finish	-	Chrome
Body Material	-	Brass
Cable Group	-	RG-179, 8232A, Belden 8215
Center Contact Material	-	Beryllium Copper
Center Contact Plating	-	Gold
Color	Silver	Silver
Connector Style	-	Triaxial
Connector Type	Female Sockets, Male Pins, Receptacle	Female Sockets, Male Pins, Receptacle, Female Socket, Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Bronze, Brass	Bronze, Brass
Contact Termination	-	Solder Cup
Current Rating (Amps)	7 A	7 - 40 A
Dielectric Material	-	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull	Push-Pull
Housing Color	-	Silver
Impedance	-	75 Ohms
Includes	-	1 Nut, 1 Connector
Ingress Protection	IP66/IP68	IP66/IP68, IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK), Polytetrafluoroethylene (PTFE)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mating Cycles	-	1000
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Number of Ports	-	1
Number of Positions	10	1 - 10
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	310	140 - 702
Shield Termination	-	Solder
Shielding	Shielded	Shielded

ERA.2E Series

CONN CIRC RCPT 6P GOLD SLDR CUP

Part	Shell Finish	Connector Type	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Shell Material	Primary Material	Shielding	Material Flammability Rating	Number of Positions	Ingress Protection	Insert Material	Color	Fastening Type	Mounting Feature	Shell Size - Insert	Contact Finish - Mating	Contact Material	Cable Group	Impedance	Body Finish	Dielectric Material	Includes	Contact Termination	Connector Style	Body Material	Center Contact Plating	Center Contact Material	Shield Termination	Mating Cycles	Housing Color	Number of Ports
LEMO ERA.2E.306.CLL	Chrome	Female Sockets, Male Pins, Receptacle	Keyed	-55 °C	200 °C	12 A	Brass	Metal	Shielded	UL94 V-0	6	IP66/IP68	Polyetheretherketone (PEEK)	Silver	Push-Pull	Bulkhead - Rear Side Nut	306	Gold	Brass, Bronze
LEMO ERA.2E.308.CLL	Chrome	Female Sockets, Male Pins, Receptacle	Keyed	-55 °C	200 °C	9 A	Brass	Metal	Shielded	UL94 V-0	8	IP66/IP68	Polyetheretherketone (PEEK)	Silver	Push-Pull	Bulkhead - Rear Side Nut	308	Gold	Brass, Bronze
LEMO ERA.2E.302.CLL	Chrome	Female Sockets, Male Pins, Receptacle	Keyed	-55 °C	200 °C	20 A	Brass	Metal	Shielded	UL94 V-0	2	IP66/IP68	Polyetheretherketone (PEEK)	Silver	Push-Pull	Bulkhead - Rear Side Nut	302	Gold	Brass, Bronze
LEMO ERA.2E.702.CJL	Chrome	Female Sockets, Male Pins, Receptacle	Keyed	-55 °C	200 °C	15 A	Brass	Metal	Shielded	UL94 V-0		IP66/IP68	Polyetheretherketone (PEEK)	Silver	Push-Pull	Bulkhead - Rear Side Nut	702	Gold	Brass, Bronze
LEMO ERA.2E.675.CTL		Female Socket, Receptacle		-55 °C	200 °C							IP68 - Dust Tight, Waterproof			Push-Pull	Bulkhead - Rear Side Nut				8232A, Belden 8215, RG-179	75 Ohms	Chrome	Polytetrafluoroethylene (PTFE)	1 Connector, 1 Nut	Solder Cup	Triaxial	Brass	Gold	Beryllium Copper	Solder	1000	Silver	1
LEMO ERA.2E.304.CLL	Chrome	Female Sockets, Male Pins, Receptacle	Keyed	-55 °C	200 °C	10 A	Brass	Metal	Shielded	UL94 V-0	4	IP66/IP68	Polyetheretherketone (PEEK)	Silver	Push-Pull	Bulkhead - Rear Side Nut	304	Gold	Brass, Bronze
LEMO ERA.2E.307.CLL	Chrome	Female Sockets, Male Pins, Receptacle	Keyed	-55 °C	200 °C	9 A, 12 A	Brass	Metal	Shielded	UL94 V-0	7	IP66/IP68	Polyetheretherketone (PEEK)	Silver	Push-Pull	Bulkhead - Rear Side Nut	307	Gold	Brass, Bronze
LEMO ERA.2E.140.CTA	Chrome	Male Pins, Receptacle	Keyed	-55 °C	200 °C	40 A	Brass	Metal	Shielded		1	IP66/IP68	Polytetrafluoroethylene (PTFE)	Silver	Push-Pull	Bulkhead - Rear Side Nut	140	Gold	Brass
LEMO ERA.2E.310.CLL	Chrome	Female Sockets, Male Pins, Receptacle	Keyed	-55 °C	200 °C	7 A	Brass	Metal	Shielded	UL94 V-0	10	IP66/IP68	Polyetheretherketone (PEEK)	Silver	Push-Pull	Bulkhead - Rear Side Nut	310	Gold	Brass, Bronze
LEMO ERA.2E.303.CLL	Chrome	Female Sockets, Male Pins, Receptacle	Keyed	-55 °C	200 °C	15 A	Brass	Metal	Shielded	UL94 V-0		IP66/IP68	Polyetheretherketone (PEEK)	Silver	Push-Pull	Bulkhead - Rear Side Nut	303	Gold	Brass, Bronze
