19-163112-KIT

Active

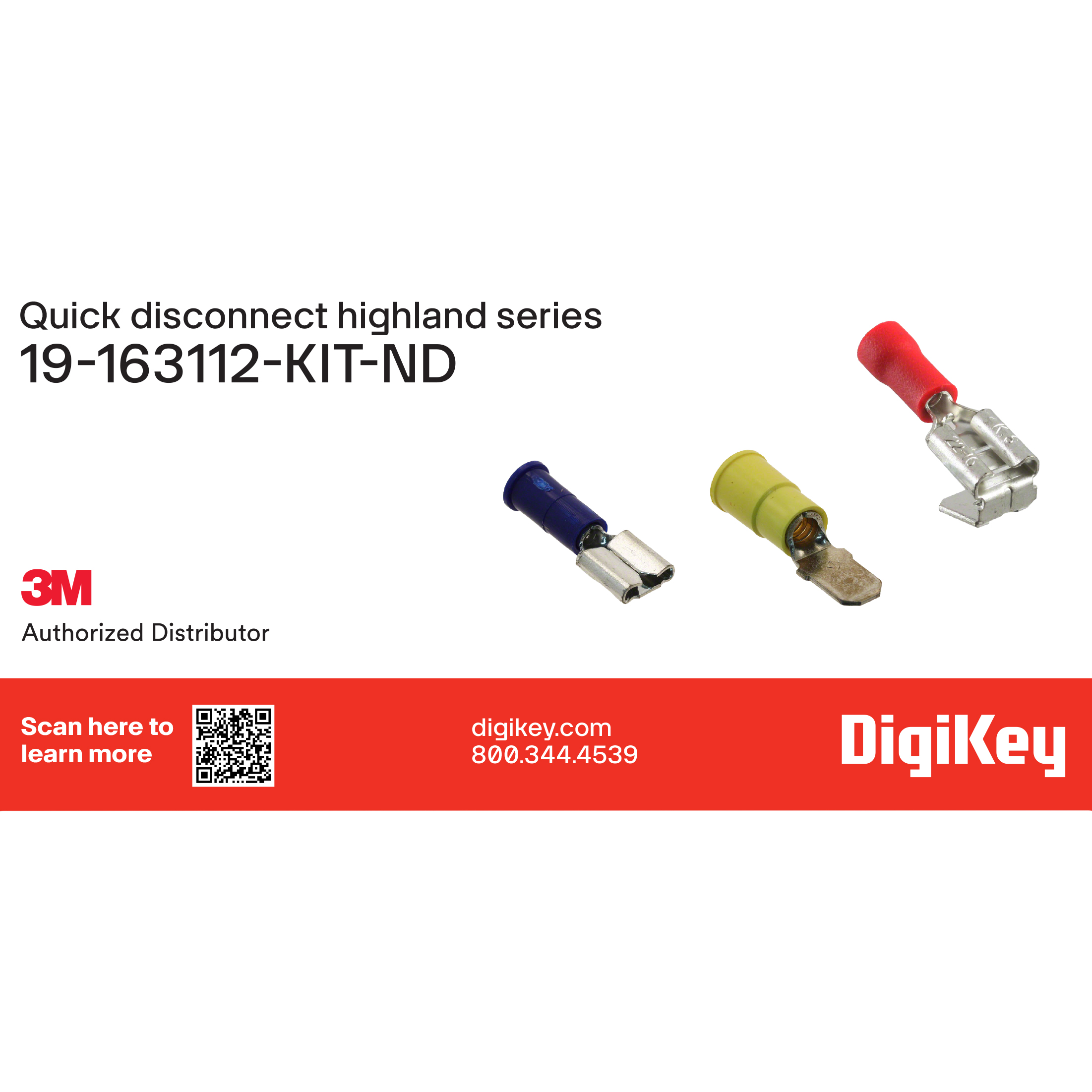

QUICK DISCONNECT HIGHLAND SERIES

Search across all available documentation for this part.

Active

QUICK DISCONNECT HIGHLAND SERIES

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	19-163112-KIT	19-16311 Series

Kit Type	Quick Disconnect	Quick Disconnect
Values	Assorted Crimp Terminals	Crimp Terminals, Assorted Crimp Terminals
Values	80	80
Values [Max]	10 AWG	10 AWG
Values [Min]	22 AWG	22 - 24 AWG

FULLY INSULATED QUIC DISCONNECTS

Part	Values [Min]	Values	Values [Max]	Values	Kit Type
3M 19-163111-KIT	24 AWG	Crimp Terminals	10 AWG	80	Quick Disconnect
3M 19-163112-KIT	22 AWG	Assorted Crimp Terminals	10 AWG	80	Quick Disconnect

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Kit Quick Disconnect

Technical documentation and resources

No documents available
