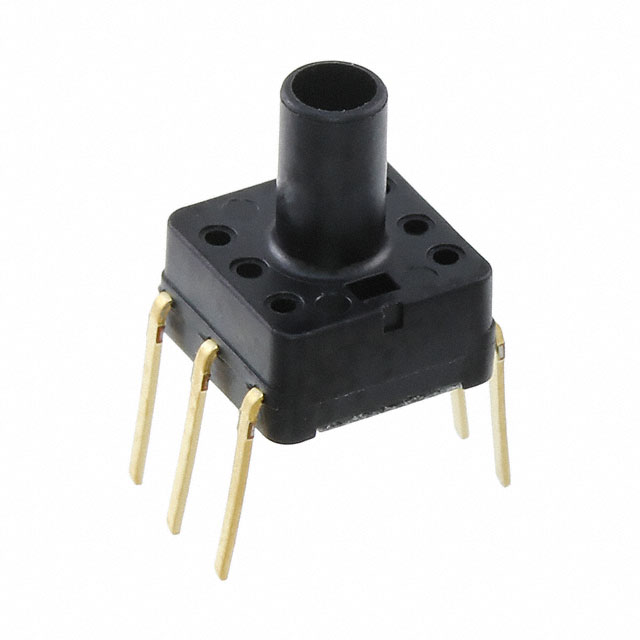

ADP5151

Panasonic Industrial Automation Sales

ADP5(PS-A) (DIP ROHS COMPLIANT: YES

Search across all available documentation for this part.

Panasonic Industrial Automation Sales

ADP5(PS-A) (DIP ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	ADP5151

Accuracy	1.25 %
Applications	Board Mount
Features	Temperature Compensated, Amplified Output
Maximum Pressure	400 kPa
Maximum Pressure	58.02 PSI
Mounting Type	Through Hole
Operating Pressure	2 bar
Operating Pressure	29.01 PSI
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Output [Max]	4.5 V
Output [Min]	0 mV
Output Type	Analog Voltage
Package / Case	6-DIP Module
Port Size	Male - Tube
Port Size	3 mm, 0.12 "
Port Style	Barbless
Pressure Type	Vented Gauge
Termination Style	PC Pin

Part	Maximum Pressure	Maximum Pressure	Port Size	Port Size	Pressure Type	Output [Max]	Output [Min]	Operating Pressure	Operating Pressure	Package / Case	Termination Style	Port Style	Mounting Type	Output Type	Features	Accuracy	Operating Temperature [Min]	Operating Temperature [Max]	Applications
Panasonic Industrial Automation Sales ADP5150	400 kPa	58.02 PSI	Male - Tube	0.12 " 3 mm	Vented Gauge	4.5 V	0 mV	2 bar	29.01 PSI	6-DIP Module	PC Pin	Barbless	Through Hole	Analog Voltage	Amplified Output Temperature Compensated	1.25 %	-10 °C	60 °C	Board Mount
Panasonic Industrial Automation Sales ADP5151	400 kPa	58.02 PSI	Male - Tube	0.12 " 3 mm	Vented Gauge	4.5 V	0 mV	2 bar	29.01 PSI	6-DIP Module	PC Pin	Barbless	Through Hole	Analog Voltage	Amplified Output Temperature Compensated	1.25 %	-10 °C	60 °C	Board Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

ADP5(PS-A) (DIP ROHS COMPLIANT: YES
