25631101RP2

Active

MH Connectors

25631101RP2 ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

MH Connectors

25631101RP2 ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	25631101RP2

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Post	2.5 mm
Contact Length - Post	0.098 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	4.3 mm
Insulation Height	0.169 "
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	11
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Termination	Solder

Part	Termination	Number of Positions	Insulation Color	Number of Positions Loaded	Contact Material	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Contact Finish Thickness - Mating	Contact Finish - Post	Contact Finish - Mating	Contact Shape	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Connector Type	Pitch - Mating [x]	Pitch - Mating [x]	Number of Rows	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height
MH Connectors 25631101RP2	Solder	11	Black	All	Phosphor Bronze	Push-Pull	2.54 µm	100 µin	Through Hole	Flash	Tin	Gold	Square	2.5 mm	0.098 in	UL94 V-0	Receptacle	0.079 in	2 mm	1	Female Socket	-40 °C	105 ░C	4.3 mm	0.169 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	500	$ 2.52
Newark	Each	500	$ 2.82
		1000	$ 2.65

General part information

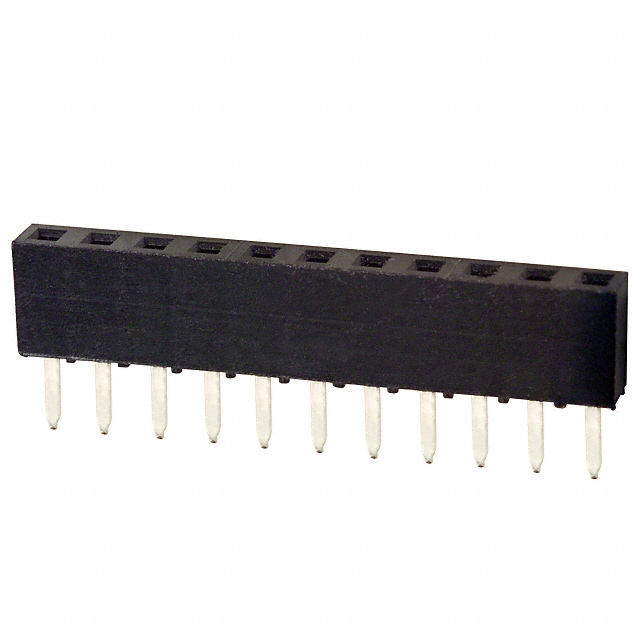

11 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
