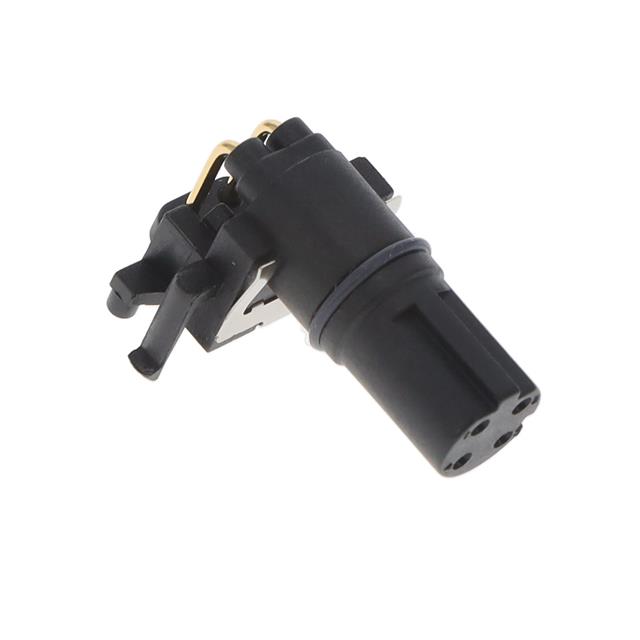

MSDS-04PFFR-EE0001
ActiveAmphenol LTW
M12 D CODE 90 DIP, SHIELDED, F C
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MSDS-04PFFR-EE0001
ActiveAmphenol LTW
M12 D CODE 90 DIP, SHIELDED, F C
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MSDS-04PFFR-EE0001 |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 4 A |
| Features | Board Guide, Board Lock |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 4 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | D |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shell Size - Insert | M12-4 |
| Shielding | Shielded |
| Termination | Solder |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 5.74 | |
| 10 | $ 5.17 | |||
| 25 | $ 4.87 | |||
| 45 | $ 4.75 | |||
| 90 | $ 4.62 | |||
| 270 | $ 4.40 | |||
Description
General part information
MSDS-04PFFR Series
4 Position Circular Connector Receptacle, Female Sockets Solder
