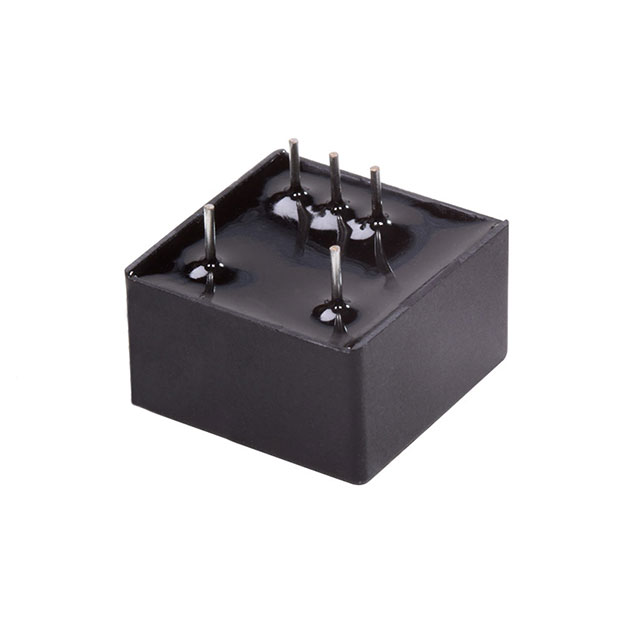

AYA01AA24-L
ActiveARTESYN / Advanced Energy
DC DC CONVERTER +/-5V 3W
Deep-Dive with AI
Search across all available documentation for this part.
AYA01AA24-L
ActiveARTESYN / Advanced Energy
DC DC CONVERTER +/-5V 3W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AYA01AA24-L |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 300 mA |
| Efficiency | 84 % |
| Features | SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 7-DIP Module, 5 Leads |
| Power (Watts) | 3 W |
| Size / Dimension [x] | 0.55 in |
| Size / Dimension [x] | 14 mm |
| Size / Dimension [y] | 0.55 in |
| Size / Dimension [y] | 14 mm |
| Size / Dimension [z] | 0.31 in |
| Size / Dimension [z] | 8 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 5 V |
| Voltage - Output 2 | -5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 10 | $ 25.18 | |
Description
General part information
AYA01AA Series
Isolated Module DC DC Converter 2 Output 5V -5V 300mA, 300mA 18V - 36V Input
